Shift Indicator - A/T
Shift Indicator - A/T

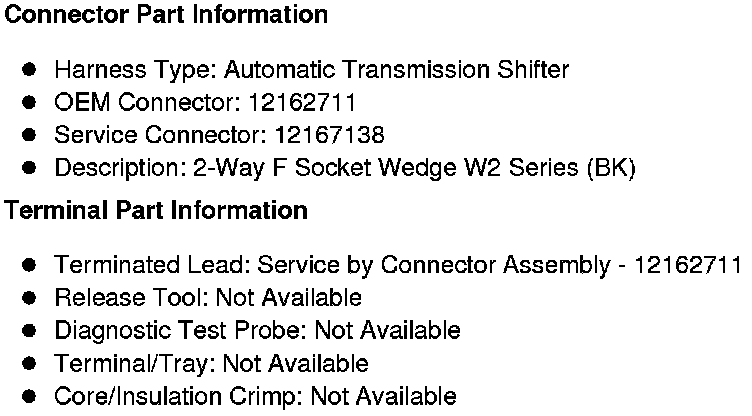

Component Connector End Views

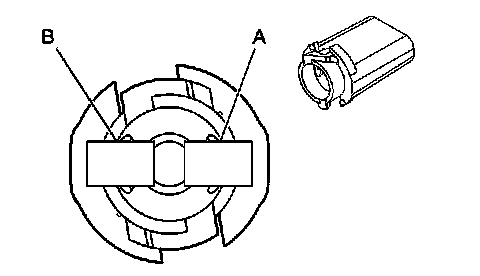

Automatic Transmission Shift Lever Position Indicator
