Power Window Switch
>>
Window Switch - Right Rear
Window Switch - Right Rear

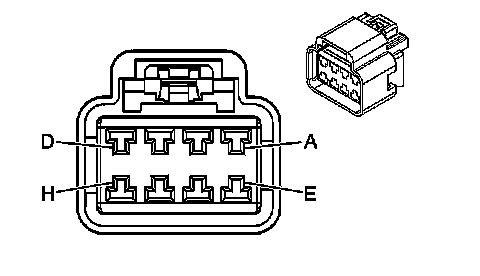

Component Connector End Views
Window Switch - Right Rear
