Headlamp
>>
System Diagram
>>

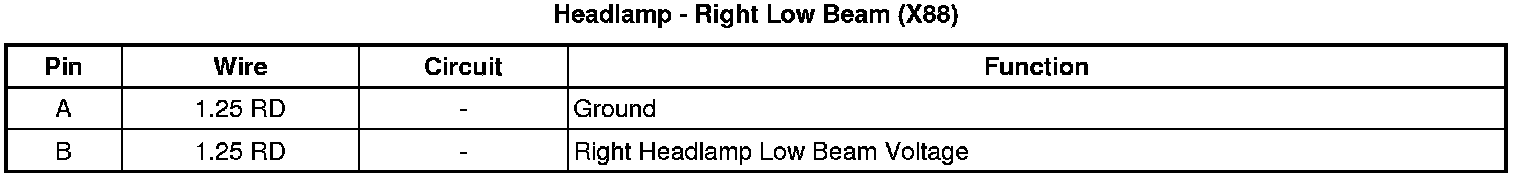

Headlamp - Right Low Beam (X88)
Headlamp - Right Low Beam (X88)

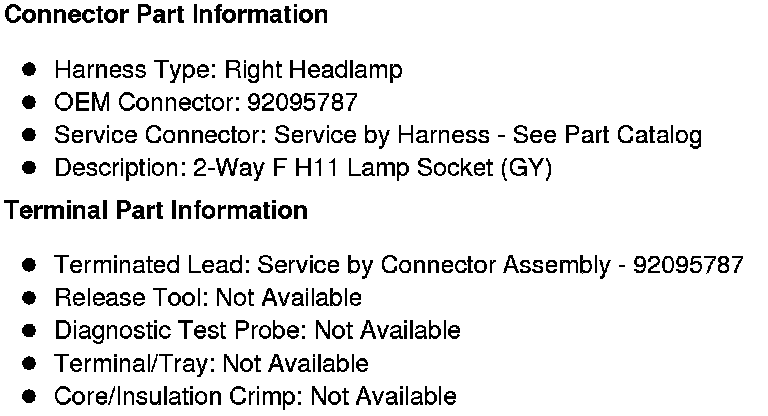

Component Connector End Views
Headlamp - Right Low Beam (X88)
