X325
X325

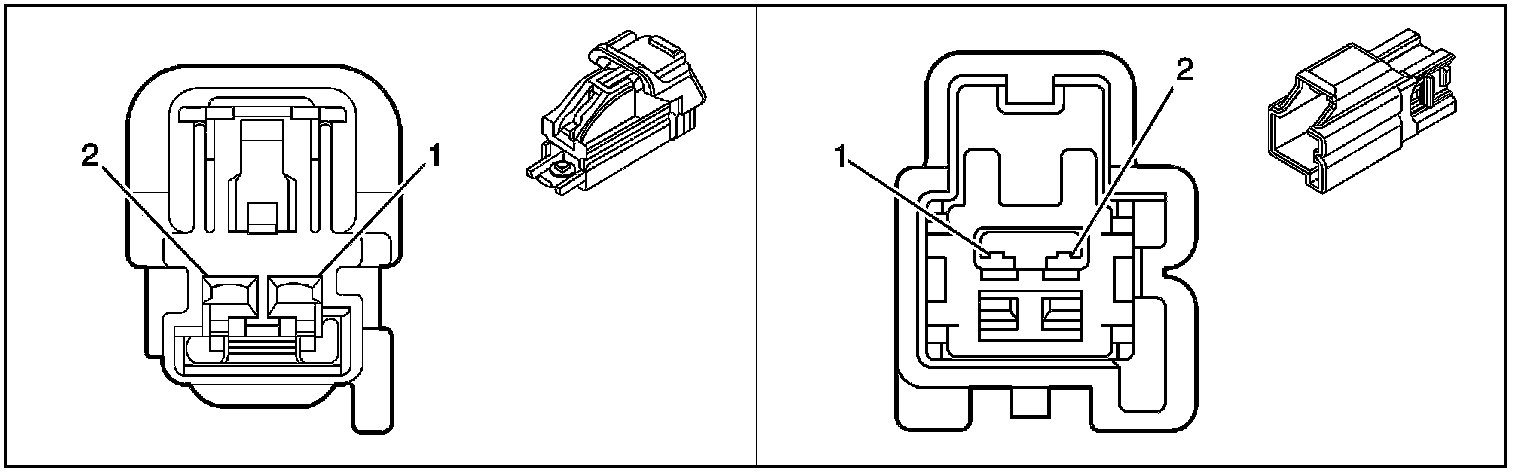

Inline Harness Connector End Views

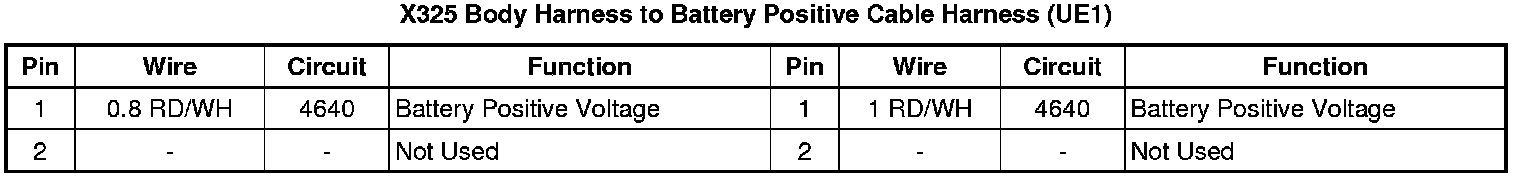

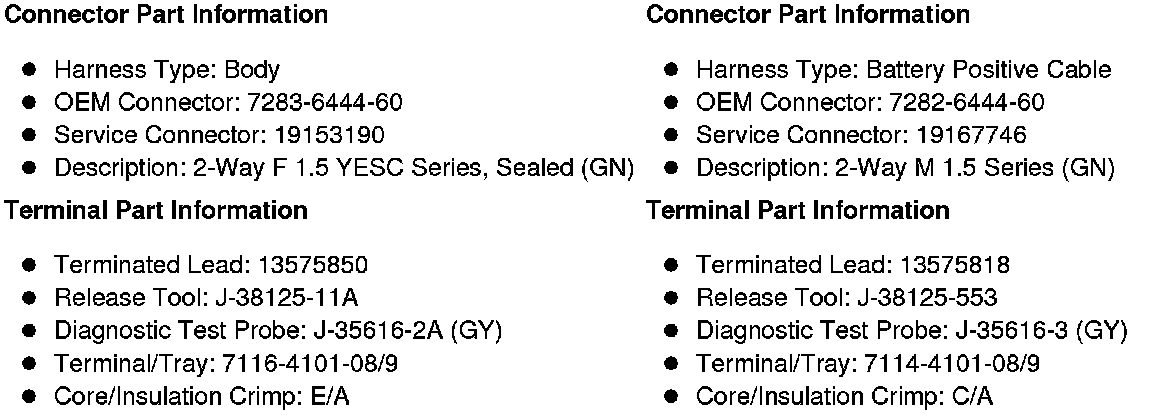

X325 Body Harness to Battery Positive Cable Harness (UE1)
