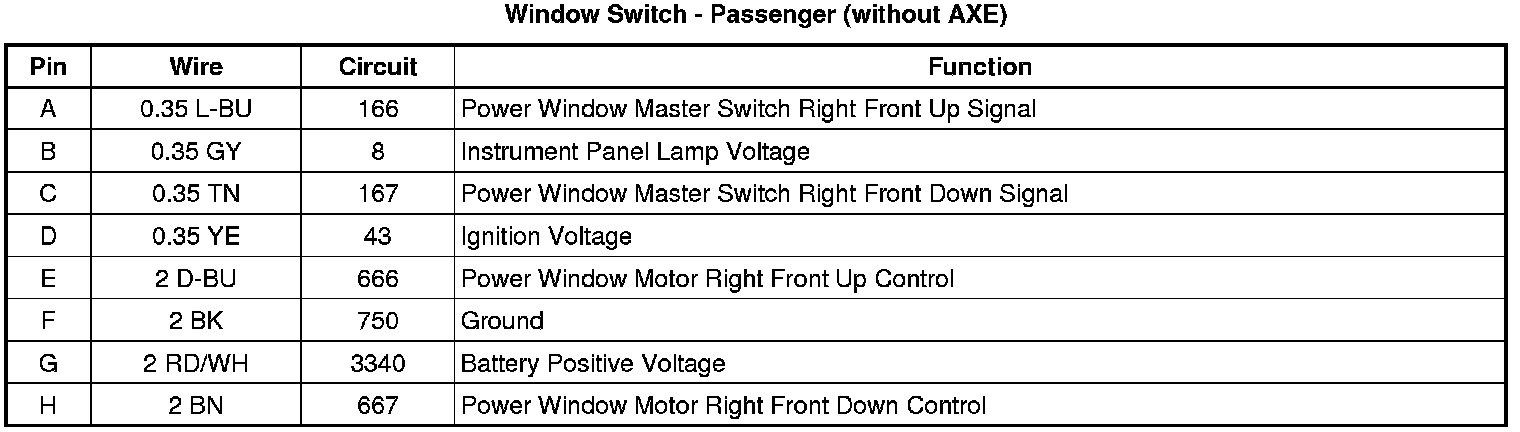

Window Switch - Passenger (without AXE)
Window Switch - Passenger (without AXE)

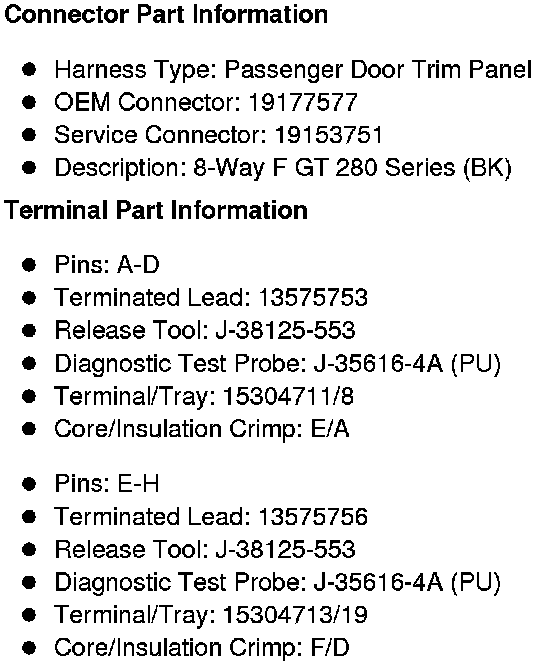

Component Connector End Views
Window Switch - Passenger (without AXE)
