Speaker - Right Front Tweeter
Speaker - Right Front Tweeter
Component Connector End Views

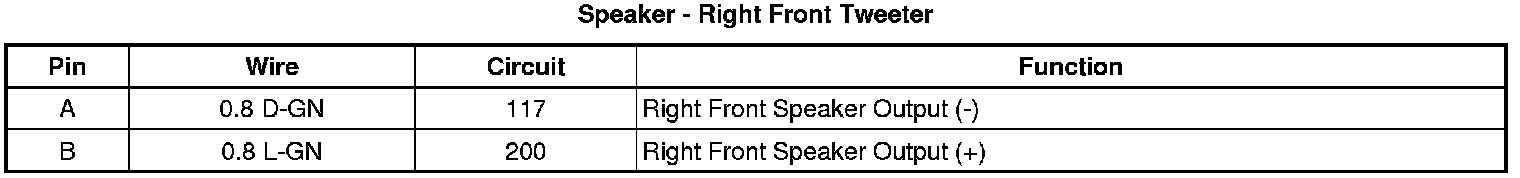

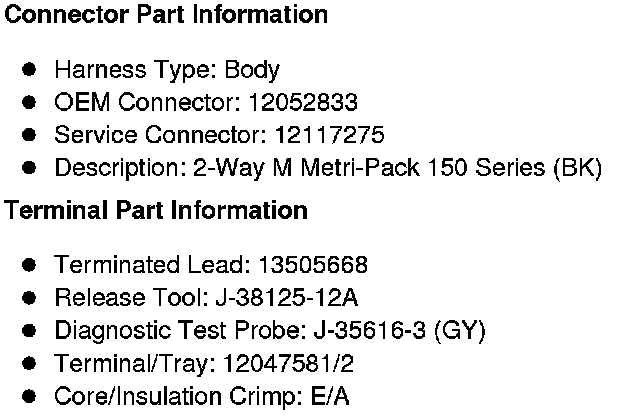

Speaker - Right Front Tweeter
