Chevy Truck
>>
2012
>>
Traverse AWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector End Views By Name
>>
Speaker - Left Front Tweeter
Speaker - Left Front Tweeter

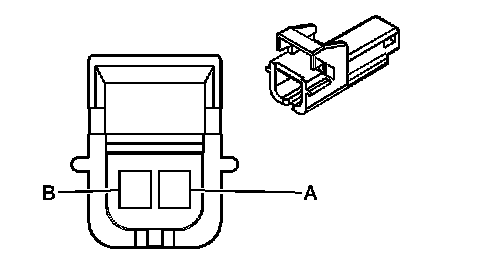

Component Connector End Views

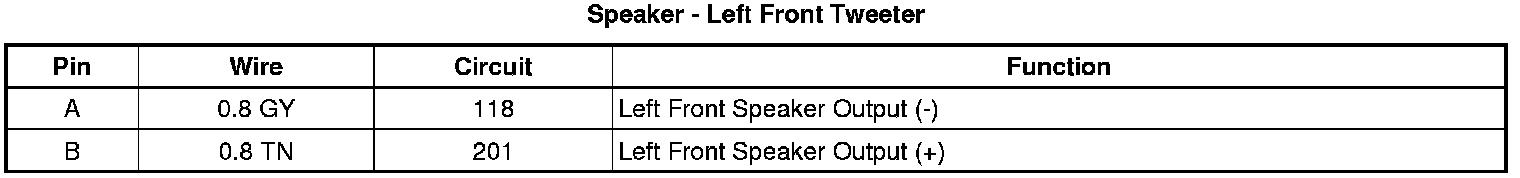

Speaker - Left Front Tweeter
