Side Marker Lamp - Right Front (W49)
Side Marker Lamp - Right Front (W49)

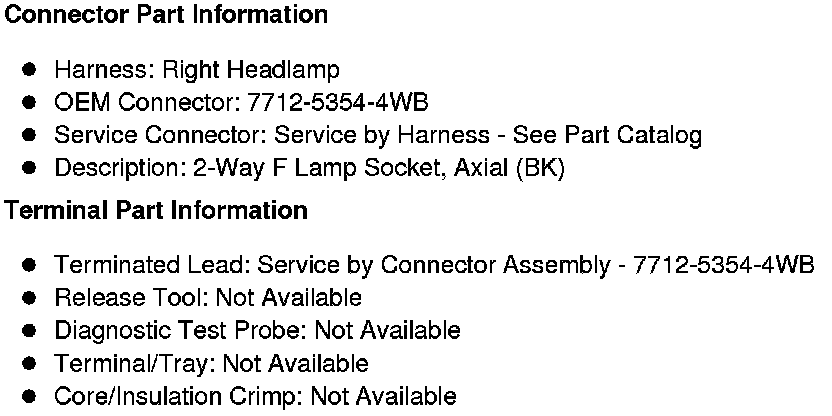

Component Connector End Views

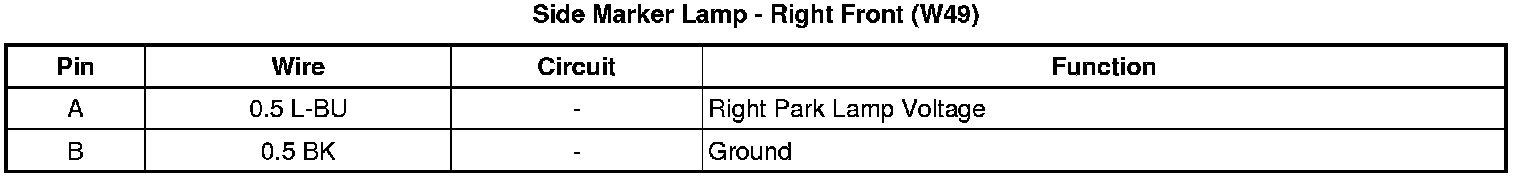

Side Marker Lamp - Right Front (W49)
