Home
>>
Chevy Truck
>>
2012
>>
Traverse AWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector End Views By Name
>>
Side Marker Lamp - Left Rear (W49)
Side Marker Lamp - Left Rear (W49)
Component Connector End Views

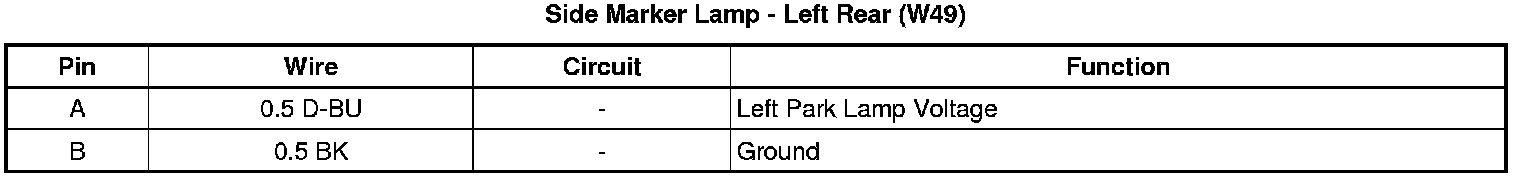

Side Marker Lamp - Left Rear (W49)
