Seat Lumbar Switch - Passenger (AAQ)
Seat Lumbar Switch - Passenger (AAQ)
Component Connector End Views

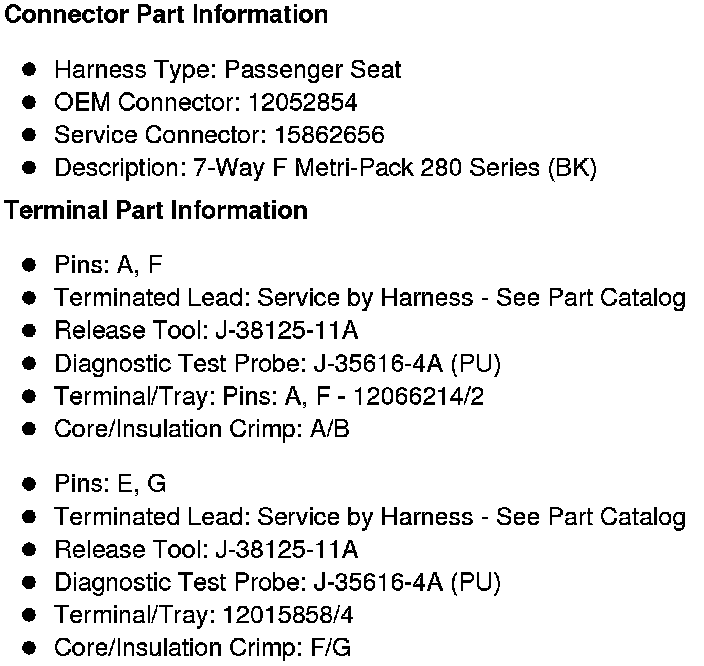

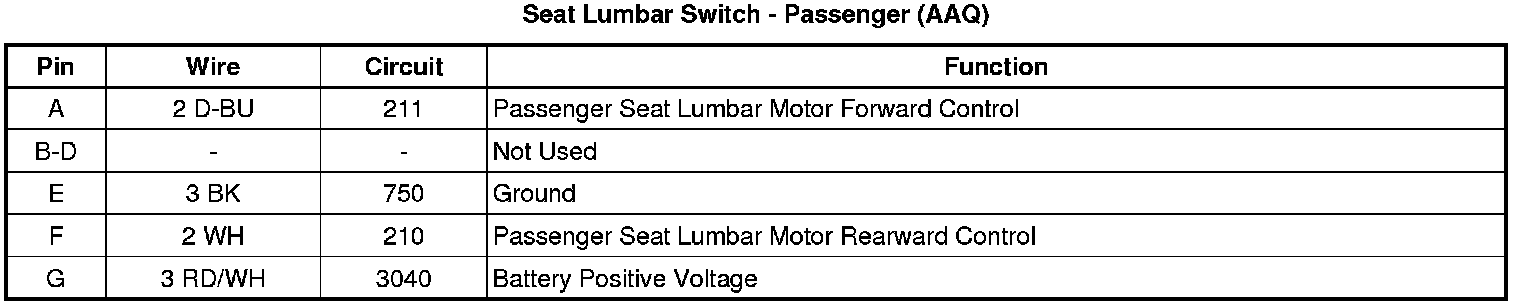

Seat Lumbar Switch - Passenger (AAQ)
