Seat Lumbar Horizontal Motor - Passenger (AAQ)
Seat Lumbar Horizontal Motor - Passenger (AAQ)
Component Connector End Views

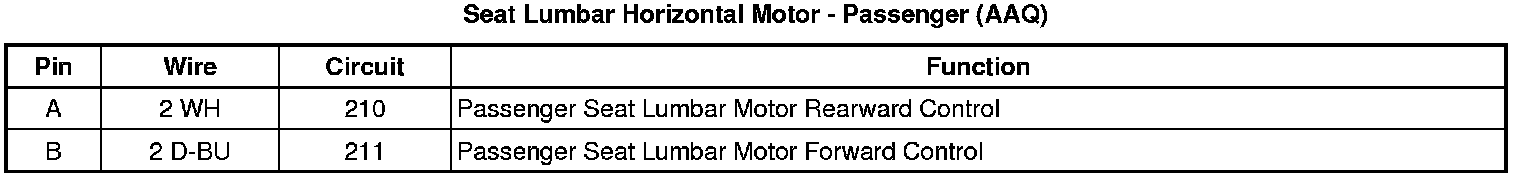

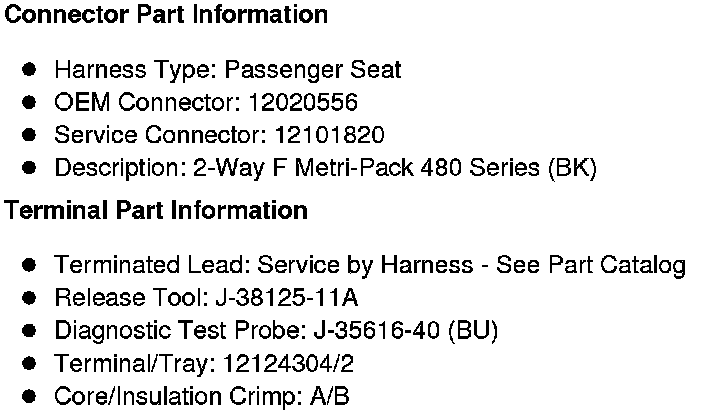

Seat Lumbar Horizontal Motor - Passenger (AAQ)
