Inflatable Restraint Side Impact Module - Left
Inflatable Restraint Side Impact Module - Left
Component Connector End Views

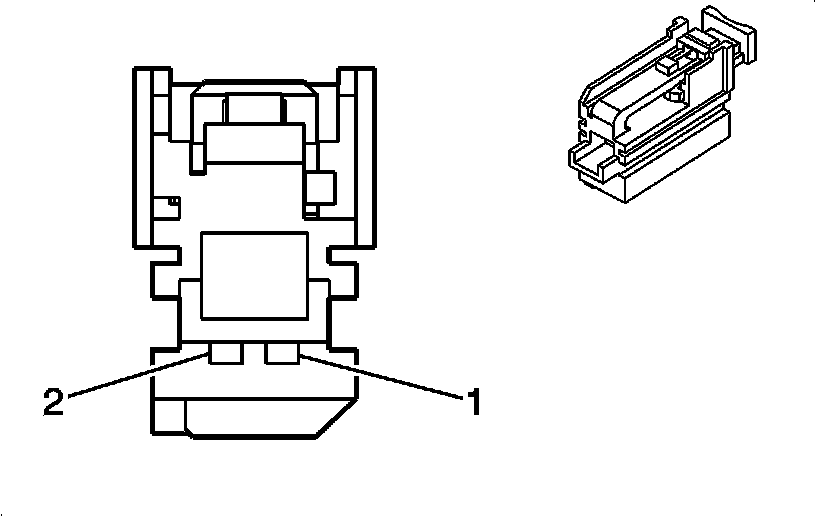

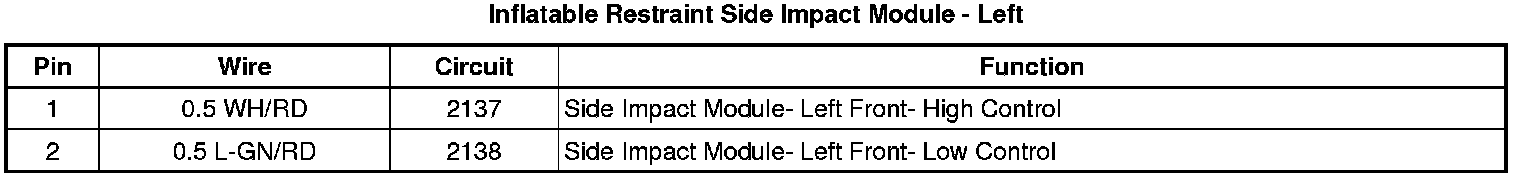

Inflatable Restraint Side Impact Module - Left
