Headlamp Ballast - Left (Z88 with TVD or W49)
Headlamp Ballast - Left (Z88 with TVD or W49)
Component Connector End Views

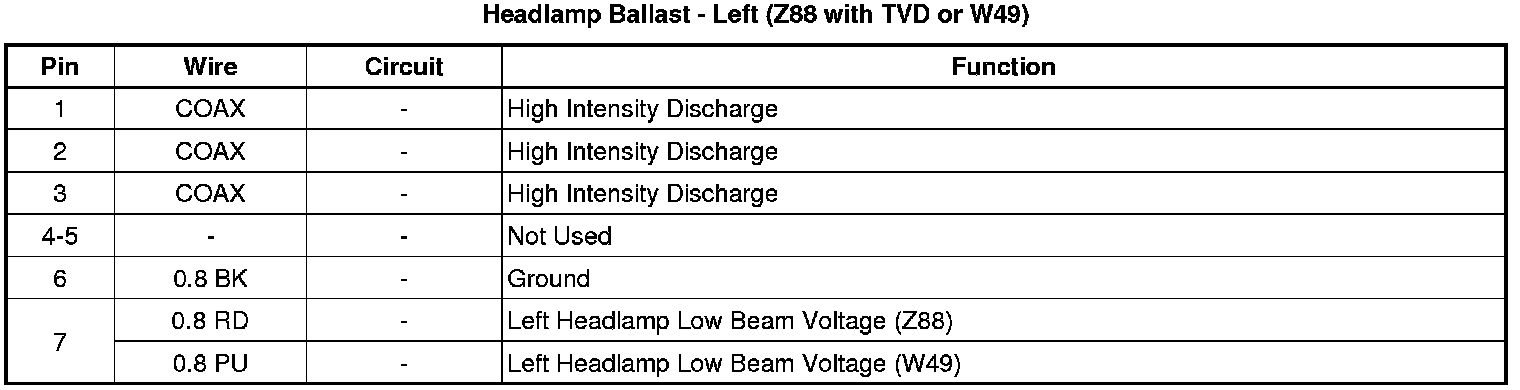

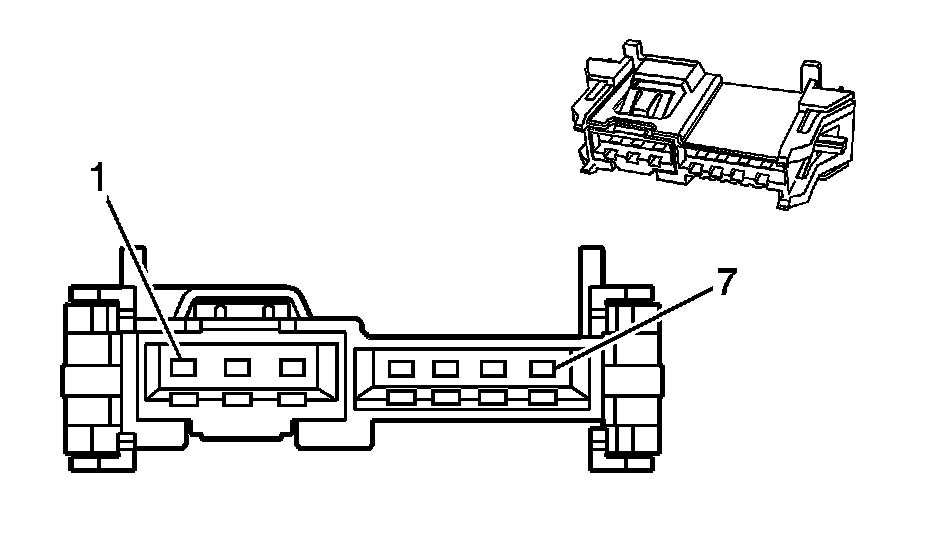

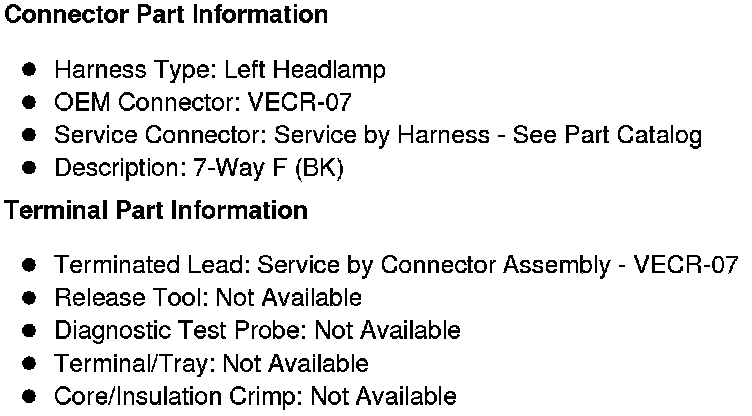

Headlamp Ballast - Left (Z88 with TVD or W49)
