Courtesy/Reading Lamps - 3rd Row
Courtesy/Reading Lamps - 3rd Row

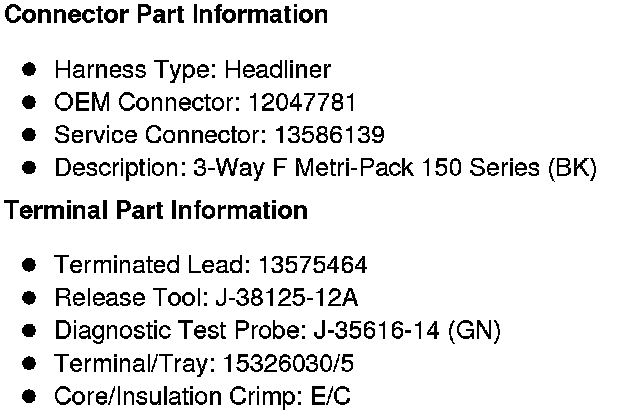

Component Connector End Views

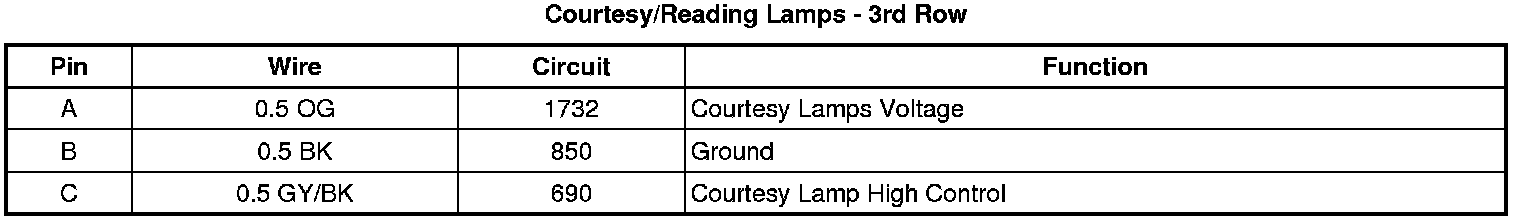

Courtesy/Reading Lamps - 3rd Row
