Air Temperature Actuator - Right (CJ2)
Air Temperature Actuator - Right (CJ2)

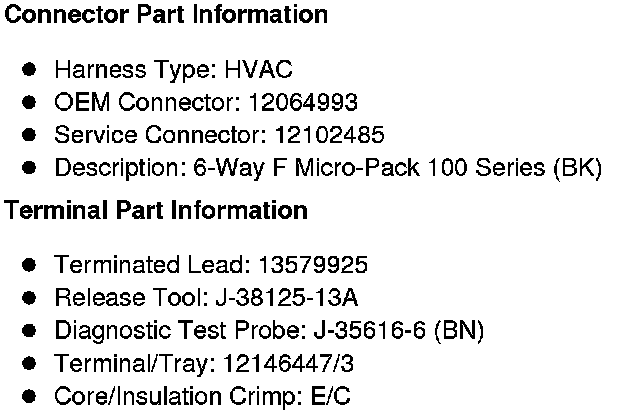

Component Connector End Views

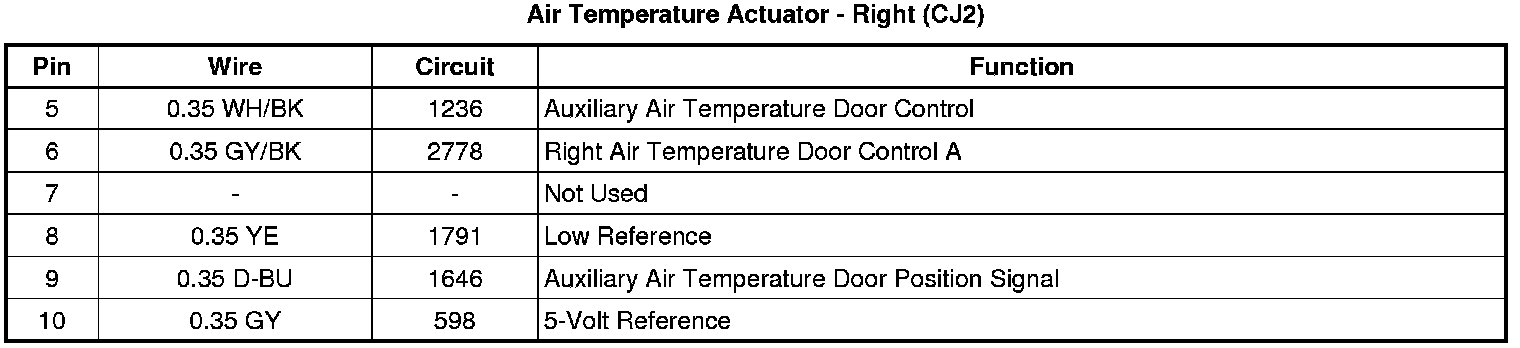

Air Temperature Actuator - Right (CJ2)
