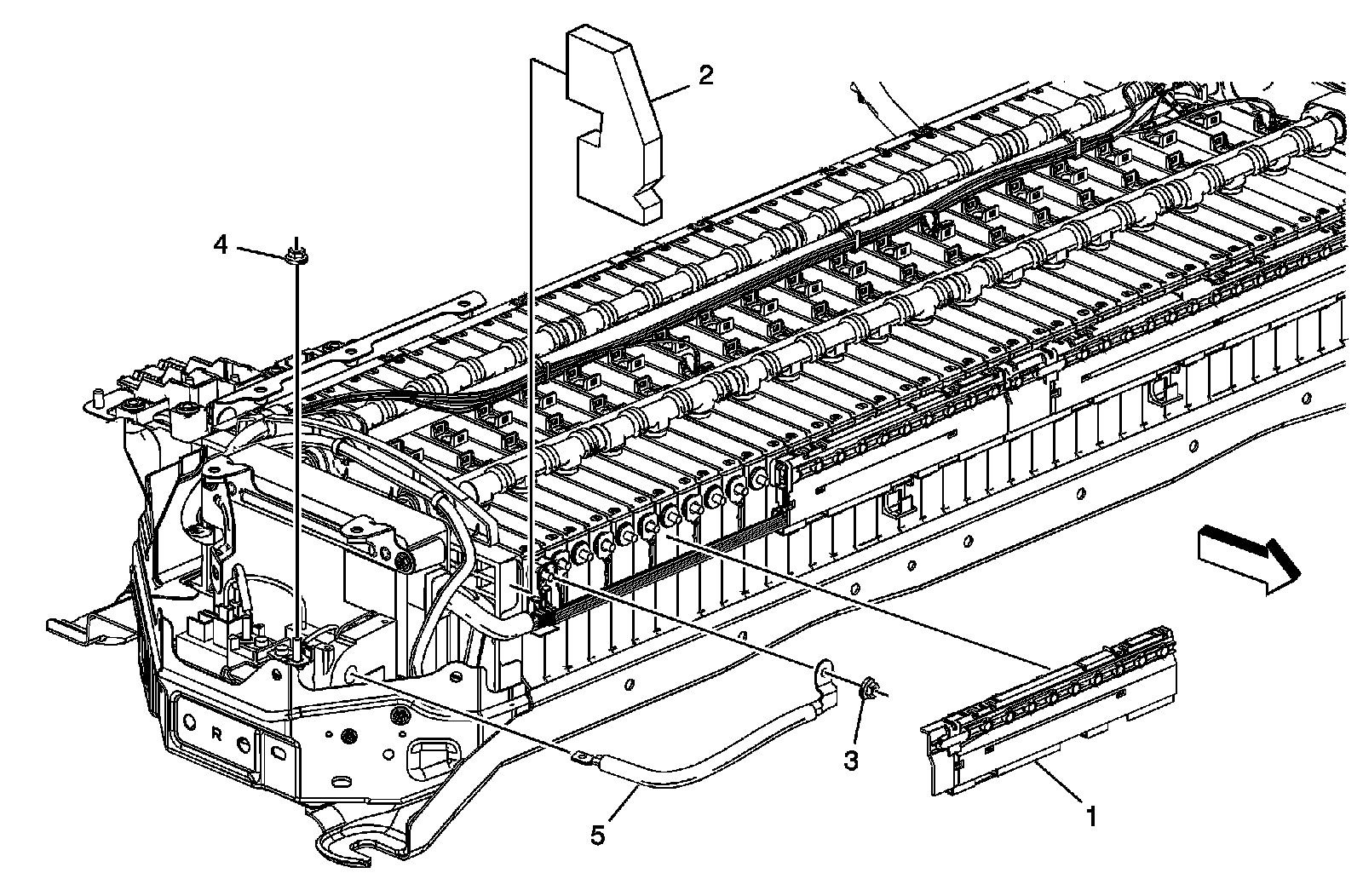

Drive Motor Battery Positive Relay Cable Replacement
Drive Motor Battery Positive Relay Cable Replacement
Drive Motor Battery Positive Relay Cable Replacement
