Safety Disconnect Impact Sensor
Safety Disconnect Impact Sensor

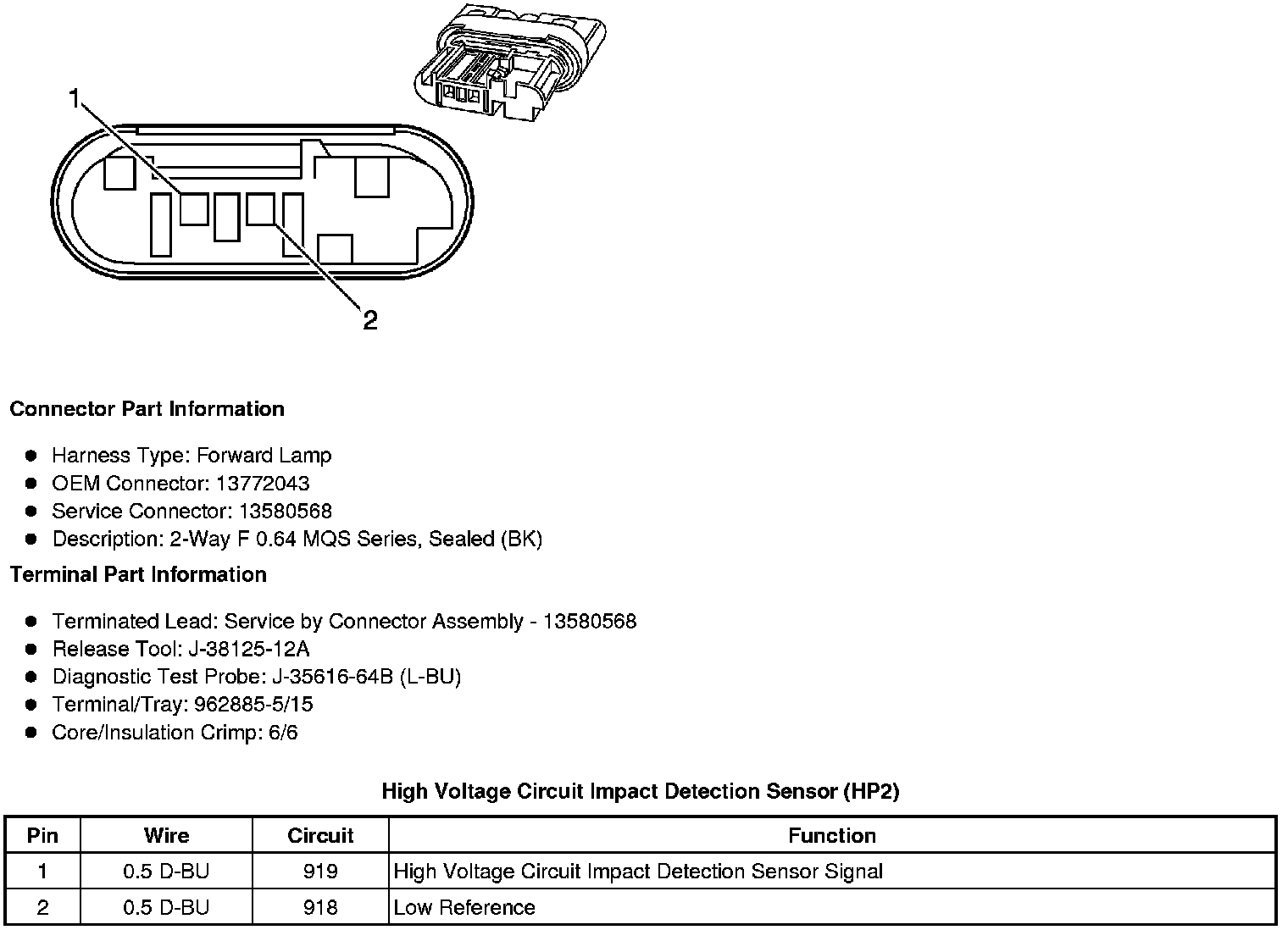

Component Connector End Views
High Voltage Circuit Impact Detection Sensor (HP2)
