Power Steering Assist Motor X1

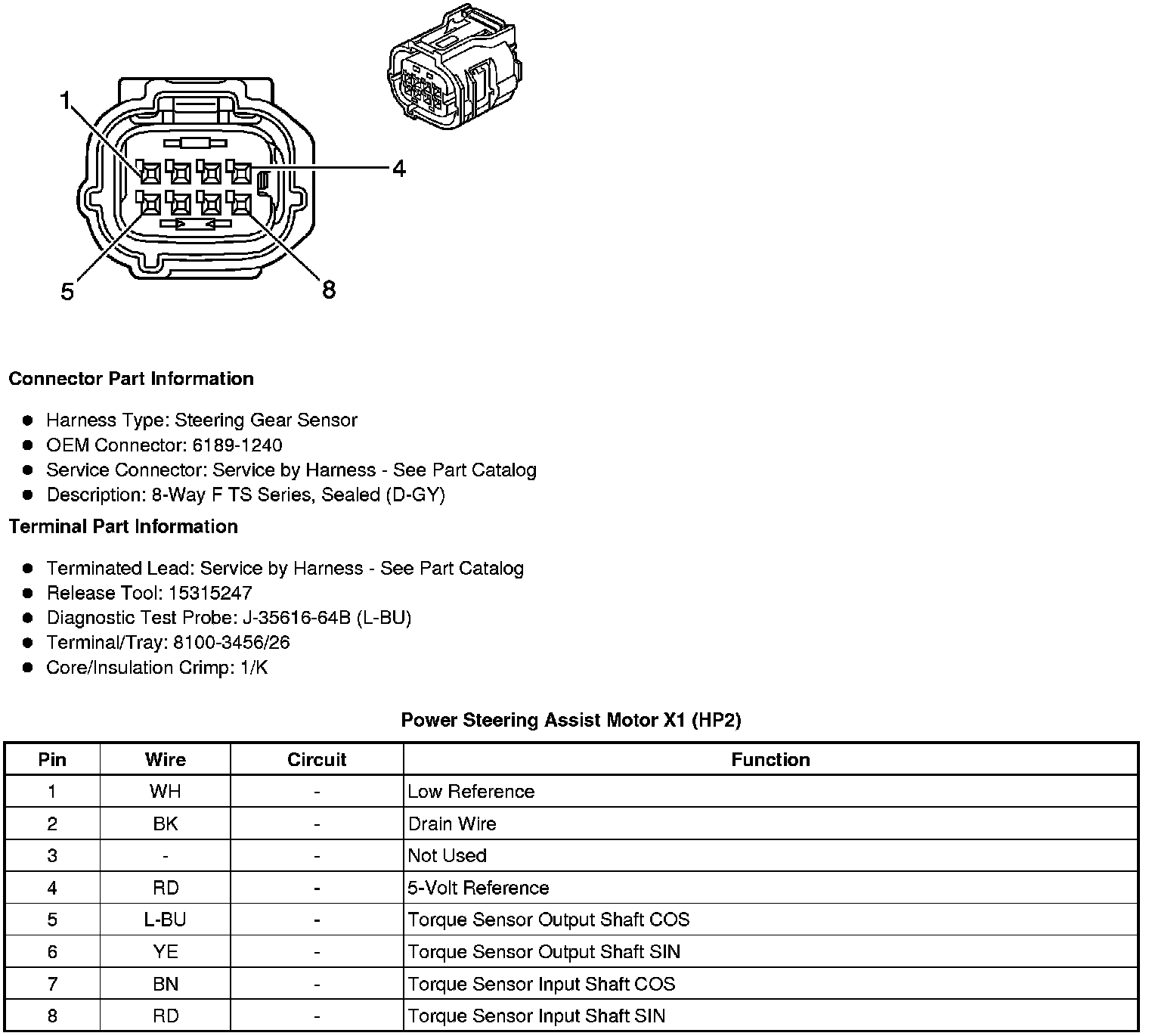

Power Steering Assist Motor X1
Component Connector End Views
Power Steering
Assist Motor X1 (HP2)
