Home
>>
Chevy Truck
>>
2012
>>
Suburban 4WD V8-5.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Windows
Windows

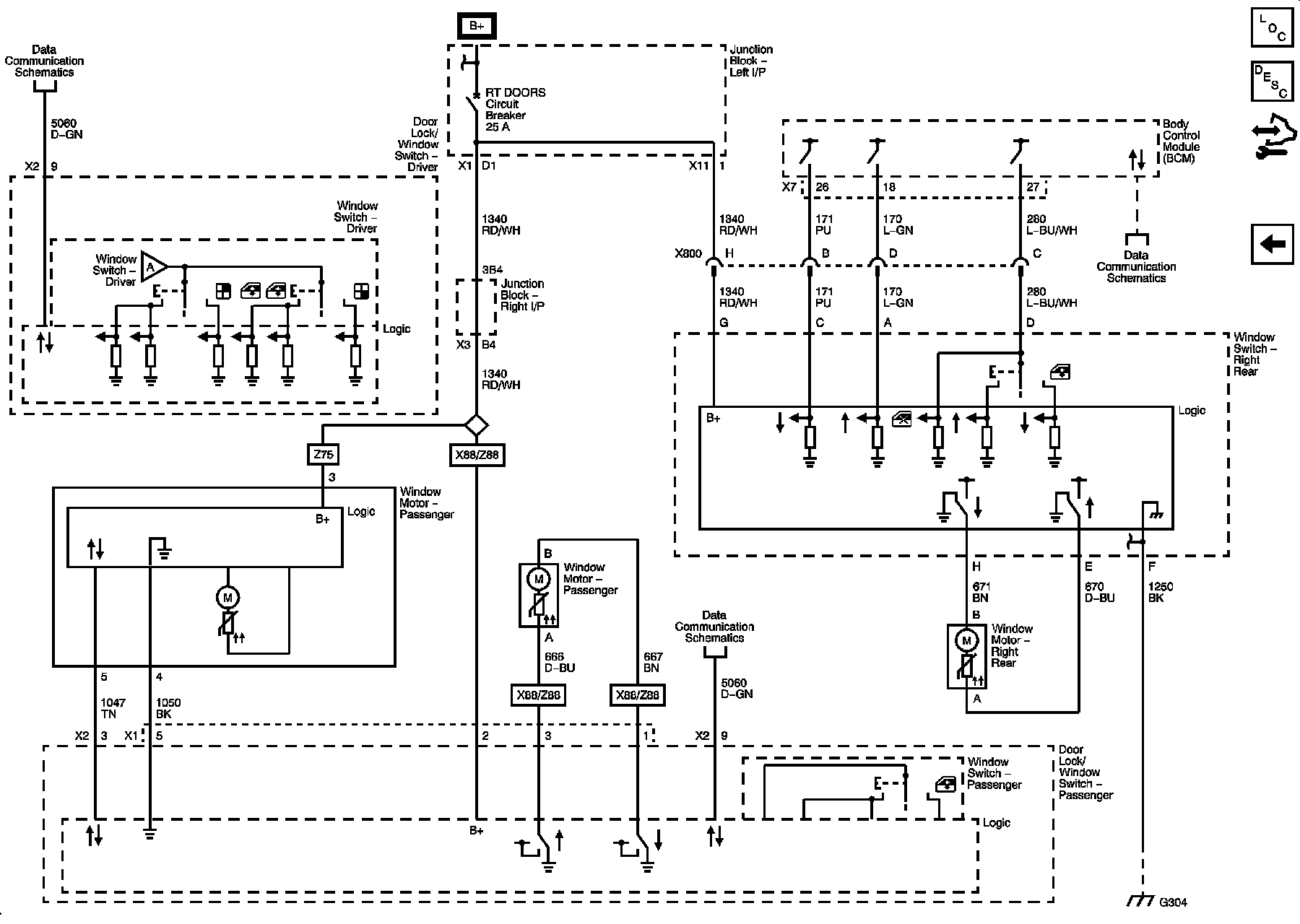

Moveable Window Schematics
Left
Right
