Chevy Truck
>>
2012
>>
Suburban 2WD V8-6.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector End Views By Name
>>
Seat Lumbar Horizontal Motor - Driver (AN3)
Seat Lumbar Horizontal Motor - Driver (AN3)
Component Connector End Views

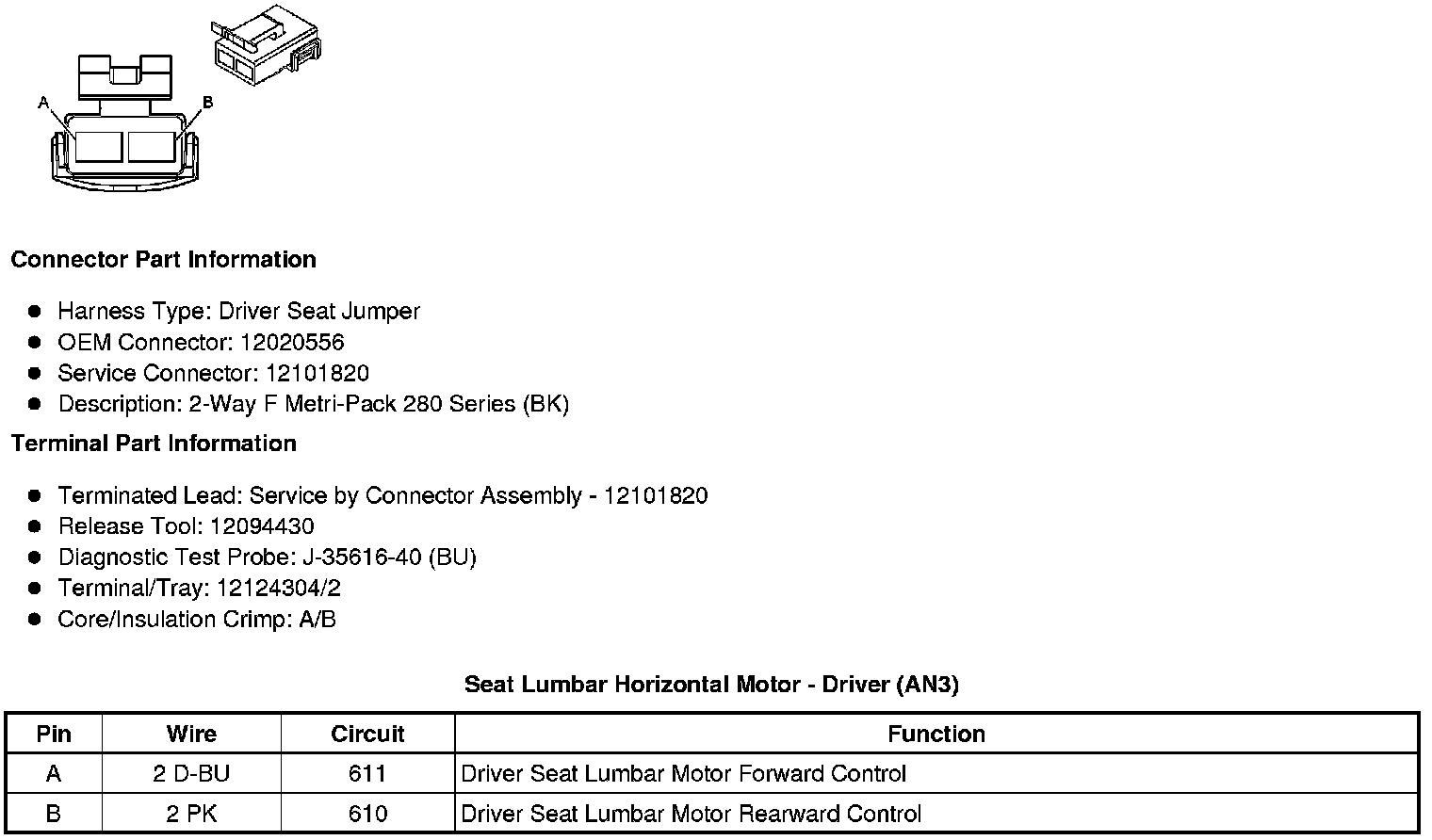

Seat Lumbar Horizontal Motor - Driver (AN3)
