Door Lock/Window Switch - Driver X7 (DL3 or DR4)
Door Lock/Window Switch - Driver X7 (DL3 or DR4)
Component Connector End Views

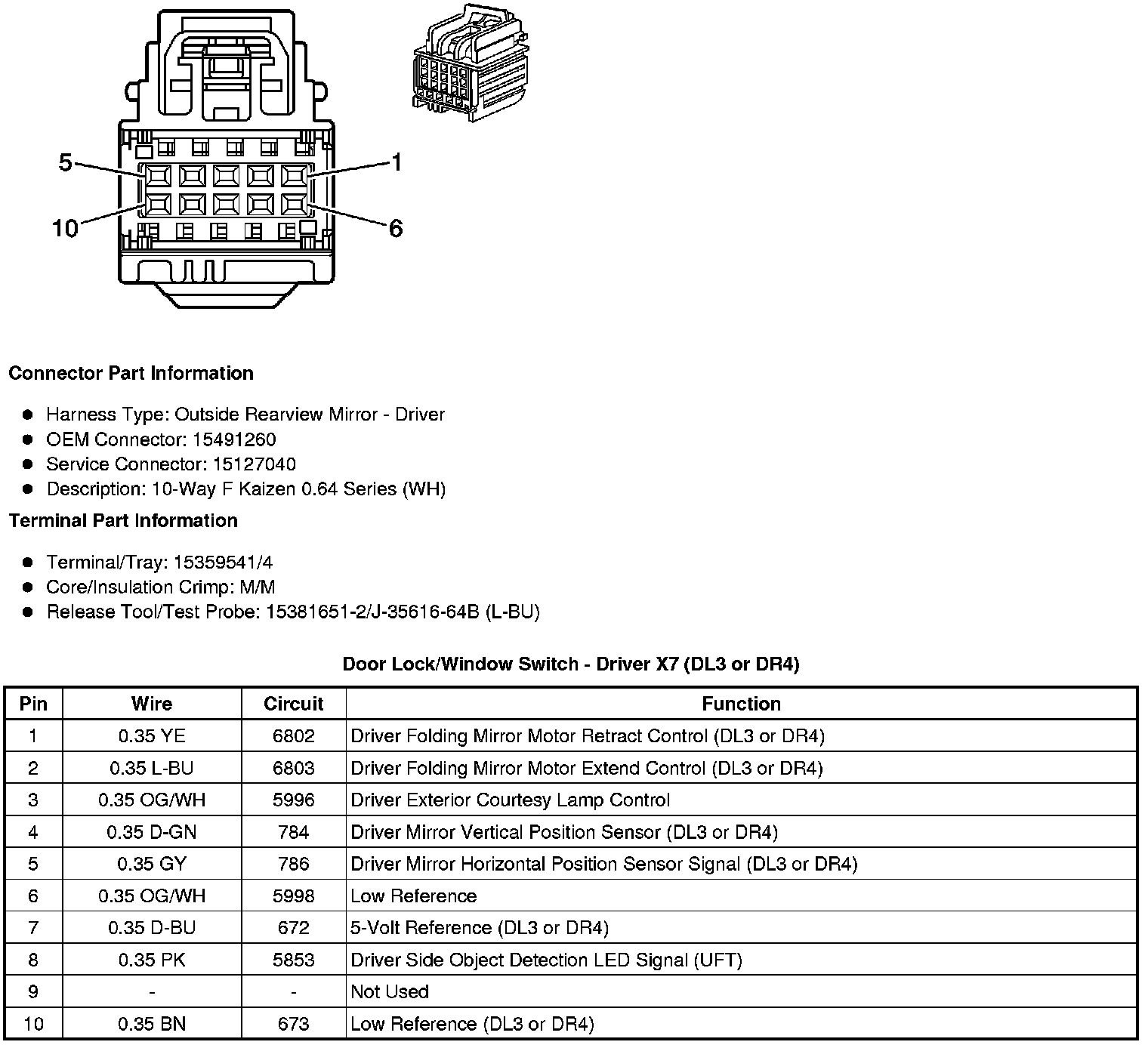

Door Lock/Window Switch - Driver X7 (DL3 or DR4)
