Seat Recline Motor - Passenger (AN3)
Seat Recline Motor - Passenger (AN3)
Component Connector End Views

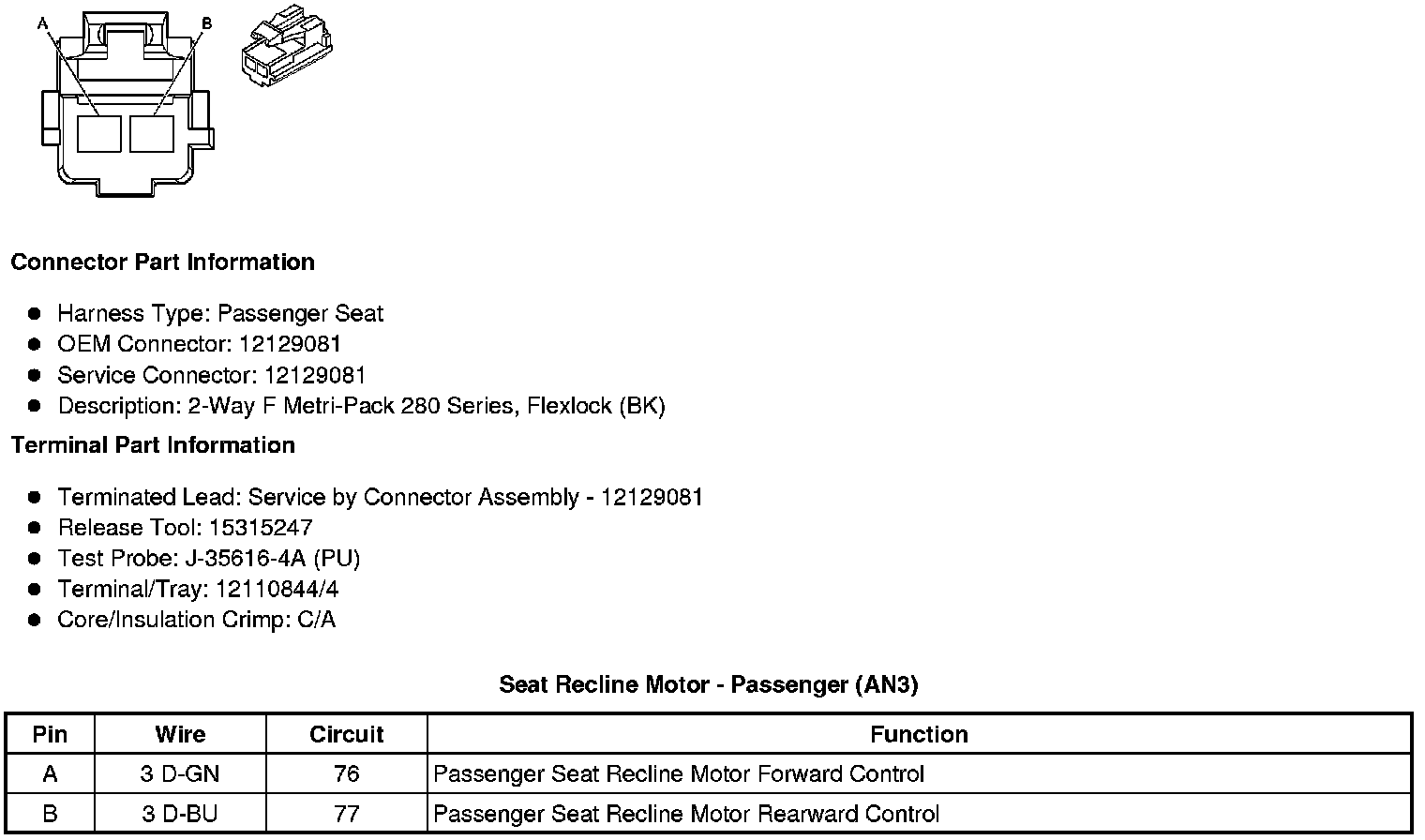

Seat Recline Motor - Passenger (AN3)
