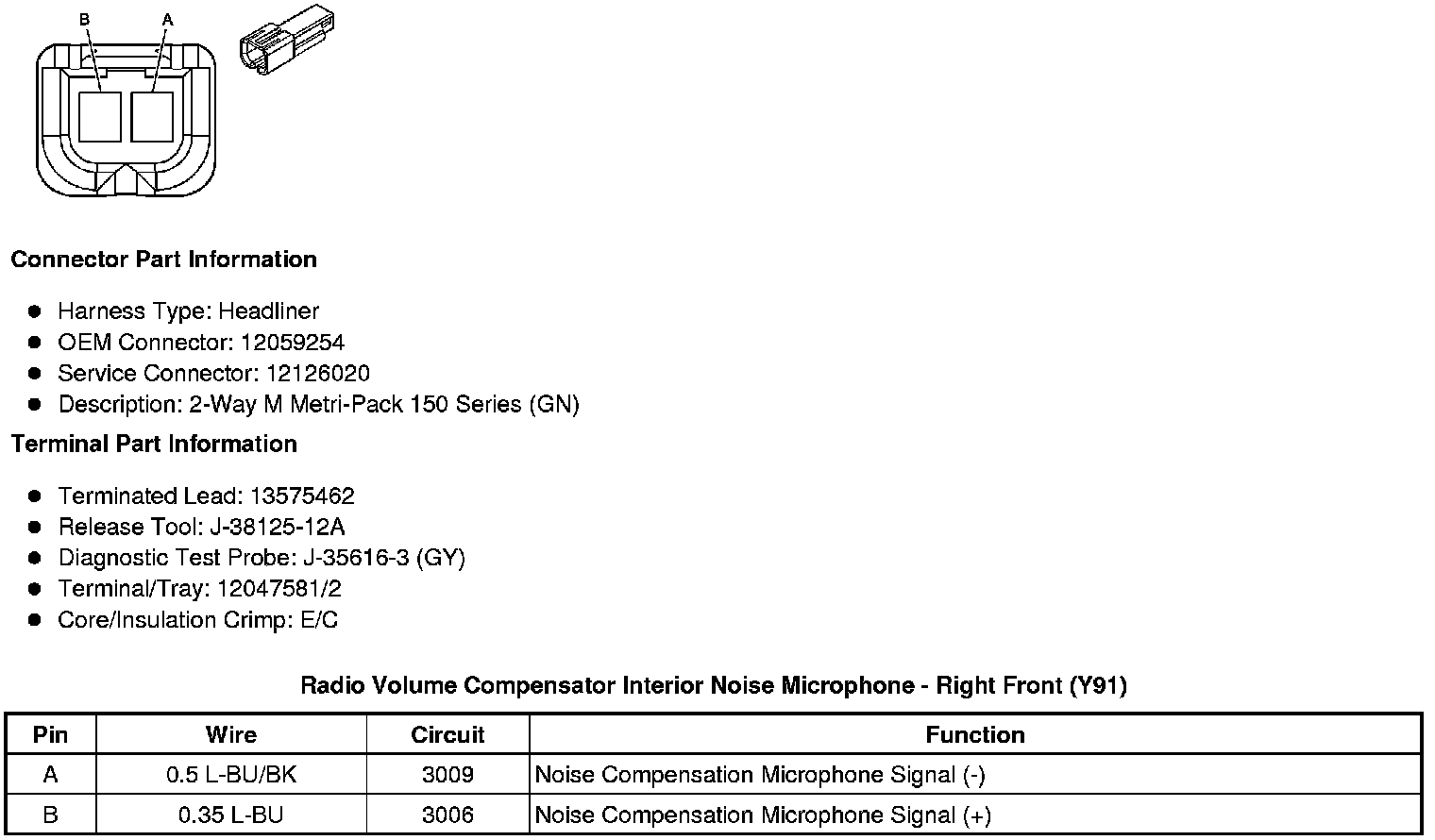

Radio Volume Compensator Interior Noise Microphone - Right Front (Y91)

Component Connector End Views

Radio Volume Compensator Interior Noise Microphone - Right Front (Y91)
