EGR Cooler Bypass Valve: Diagrams

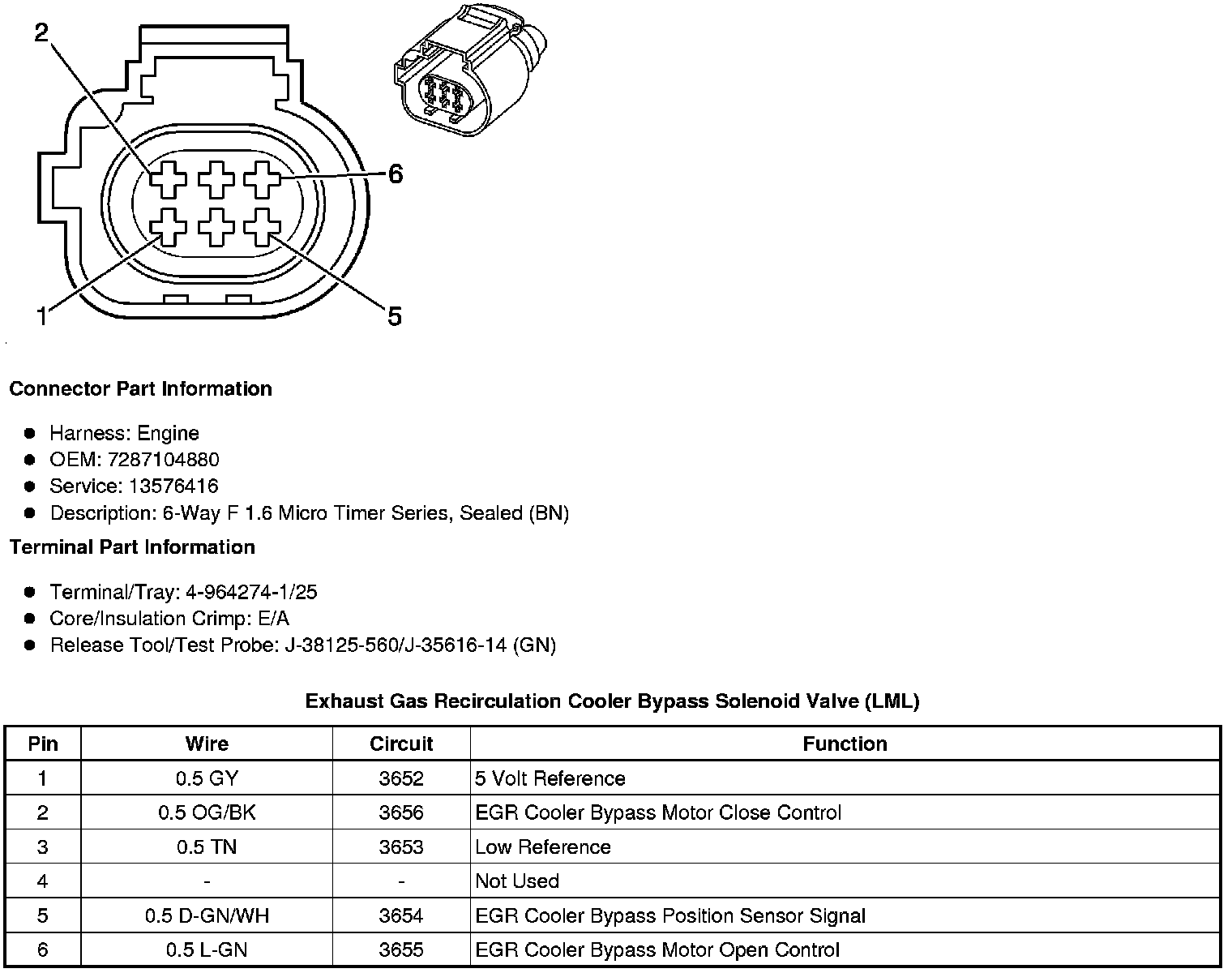

Component Connector End Views

Exhaust Gas Recirculation Cooler Bypass Solenoid Valve (LML)
