X127
X127

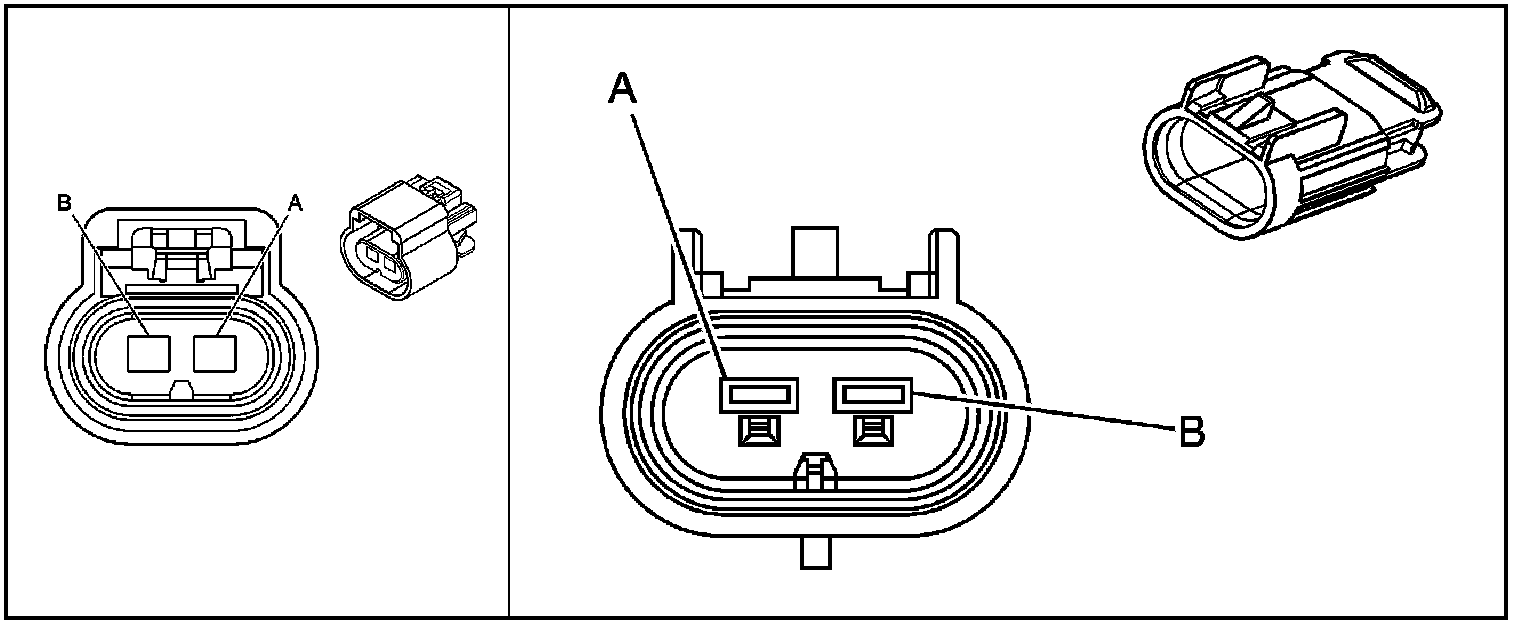

Inline Harness Connector End Views

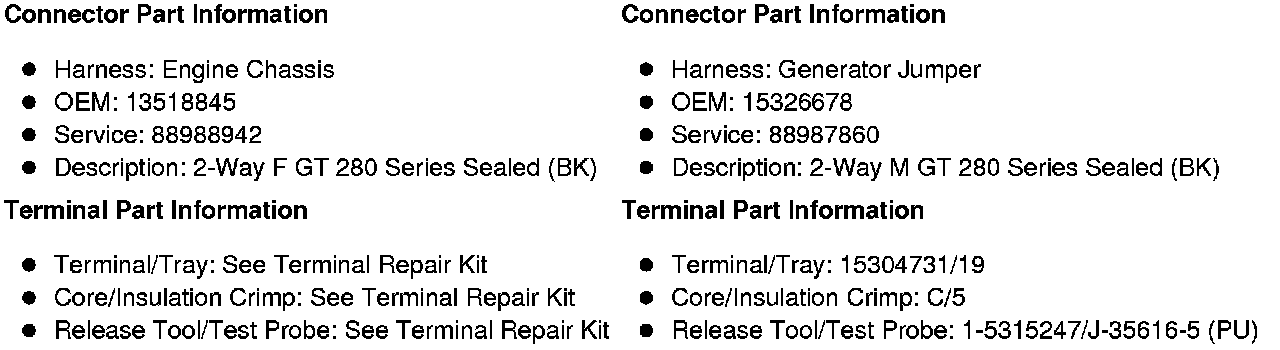

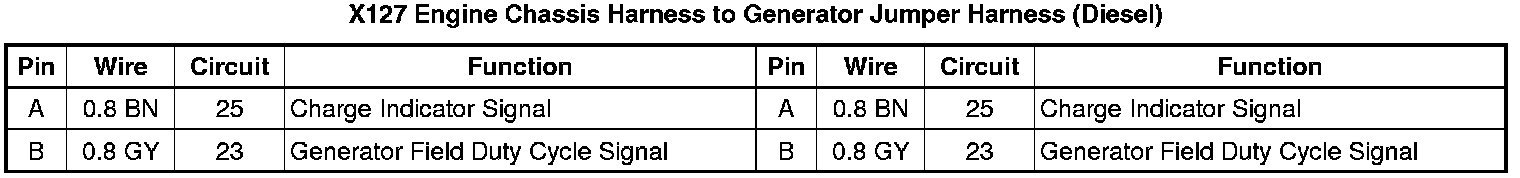

X127 Engine Chassis Harness to Generator Jumper Harness (Diesel)
