X116
X116

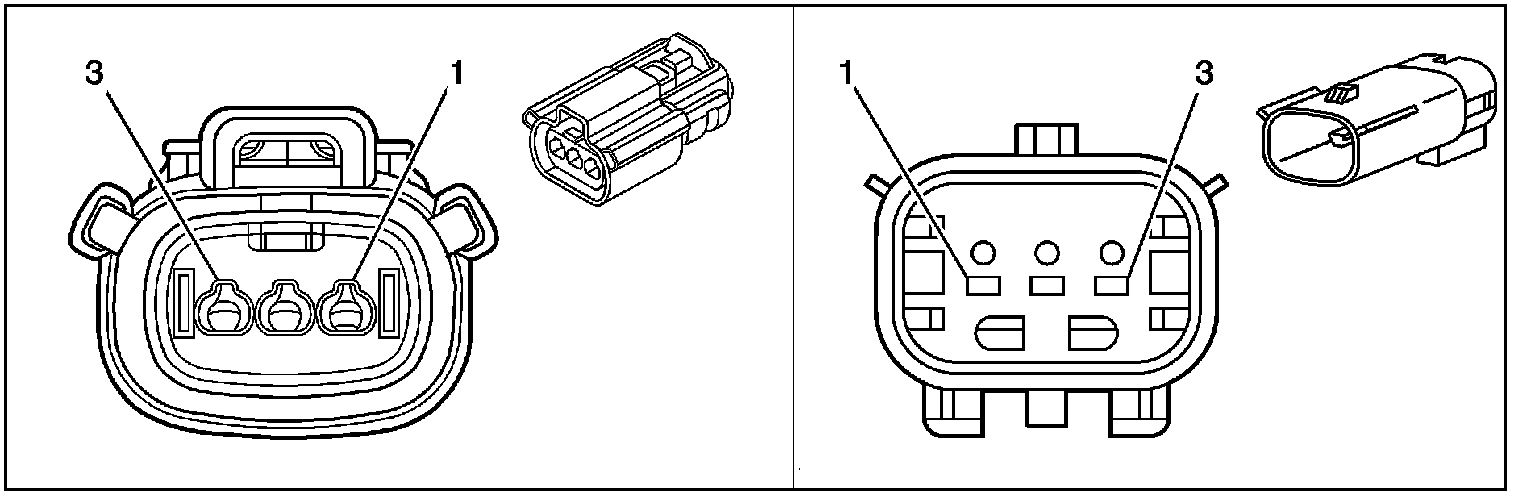

Inline Harness Connector End Views

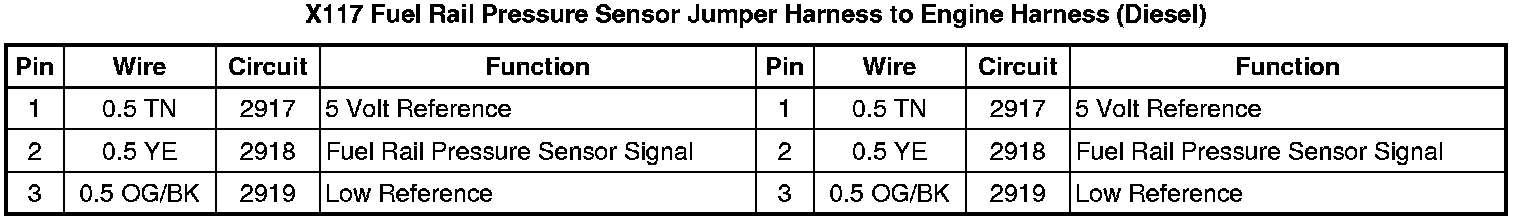

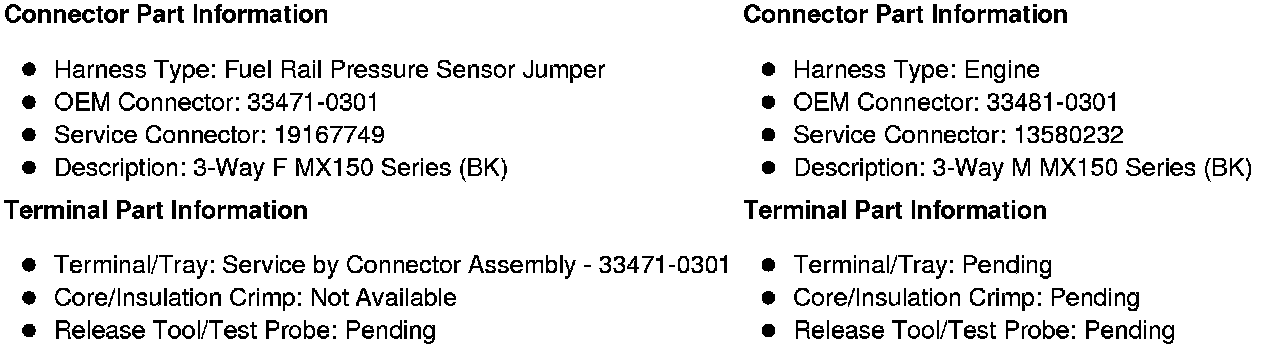

X117 Fuel Rail Pressure Sensor Jumper Harness to Engine Harness (Diesel)
