X460
X460

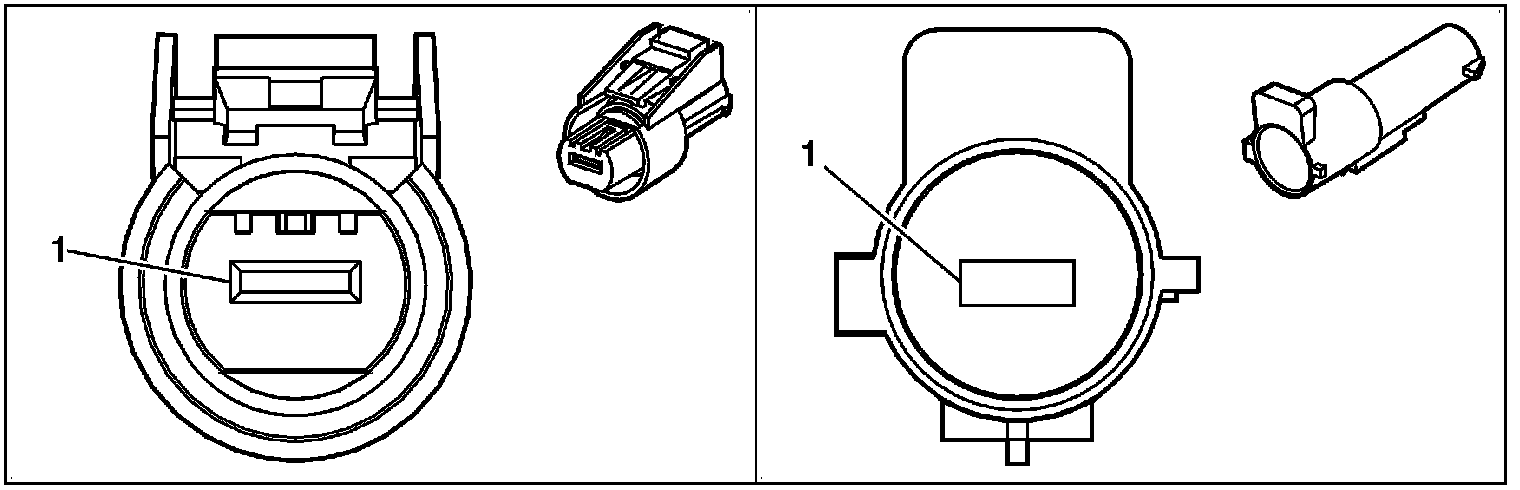

Inline Harness Connector End Views

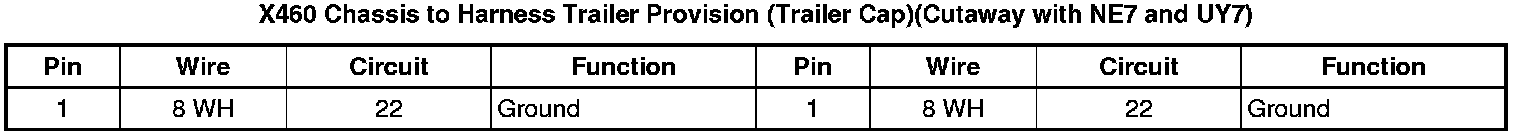

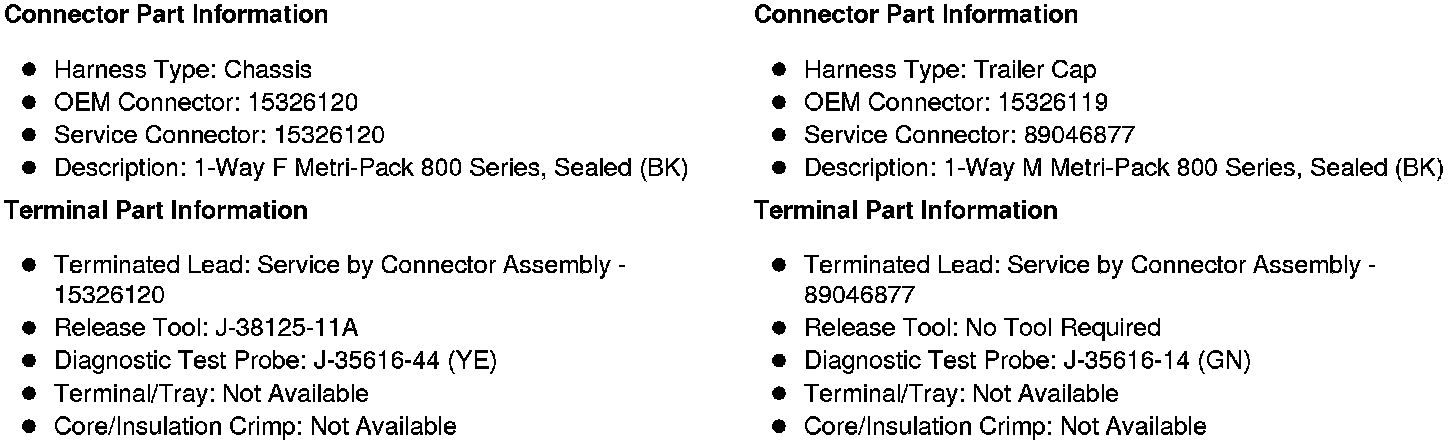

X460 Chassis to Harness Trailer Provision (Trailer Cap)(Cutaway with NE7 and UY7)
