Redundant Tank Heater
Redundant Tank Heater

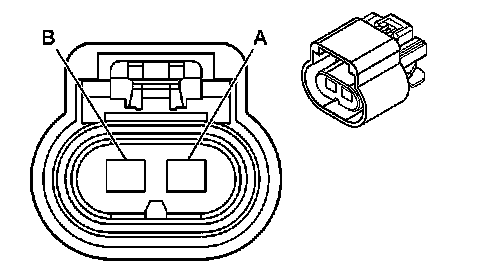

Component Connector End Views

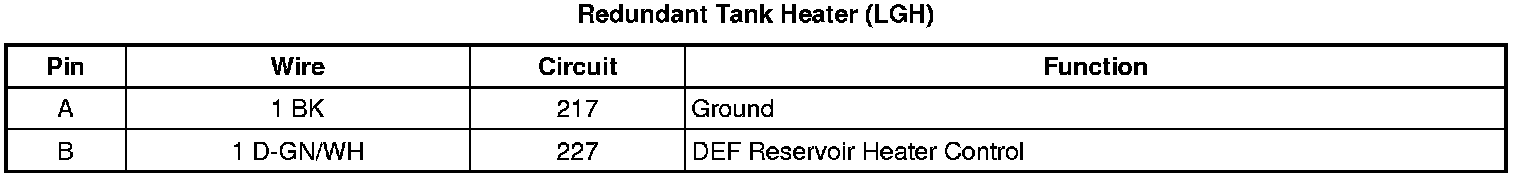

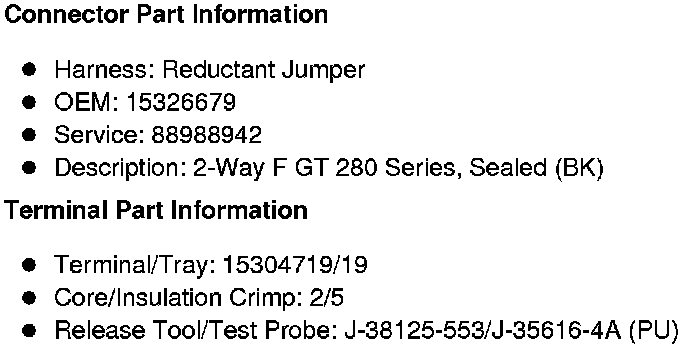

Redundant Tank Heater (LGH)
