Chevy Truck
>>
2012
>>
Express 2500 V8-6.6L DSL Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
EGR Temperature Sensor
>>
Exhaust Temperature Sensor 1
Exhaust Temperature Sensor 1

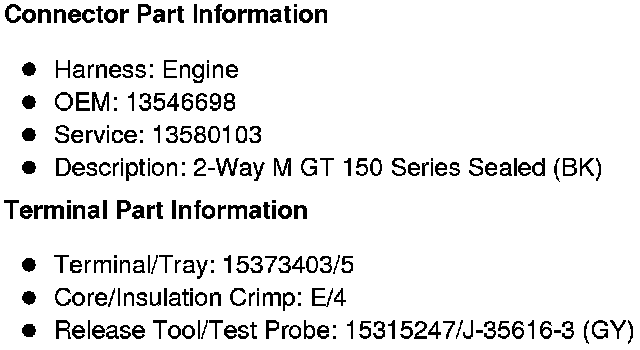

Component Connector End Views

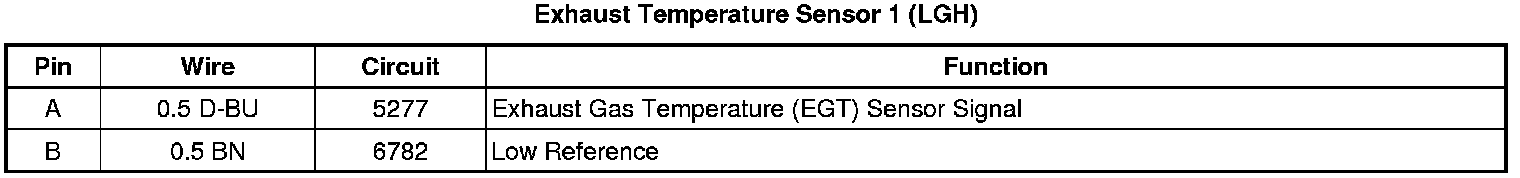

Exhaust Temperature Sensor
1 (LGH)
