Home
>>
Chevy Truck
>>
2012
>>
Express 2500 V8-4.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Dome Lamp
>>
Dome Lamp (Cargo)
Dome Lamp (Cargo)

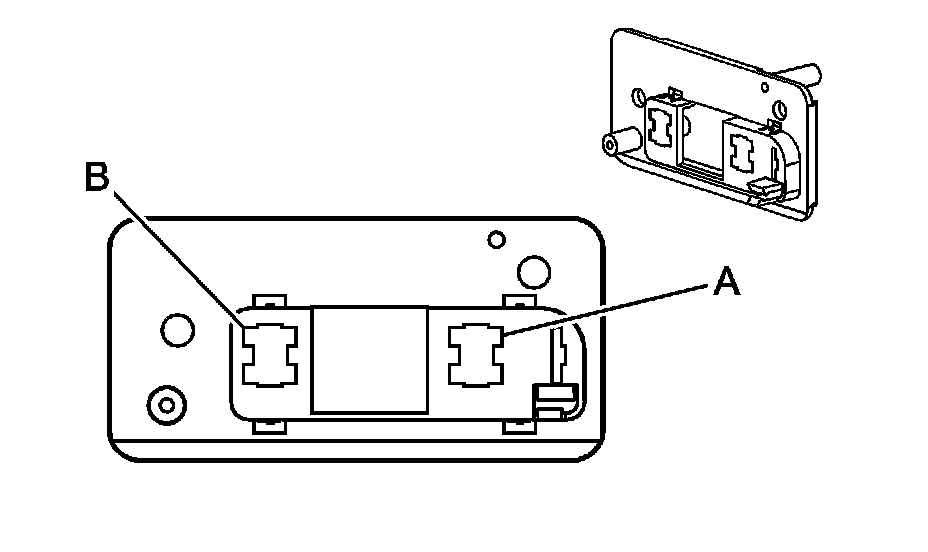

Component Connector End Views

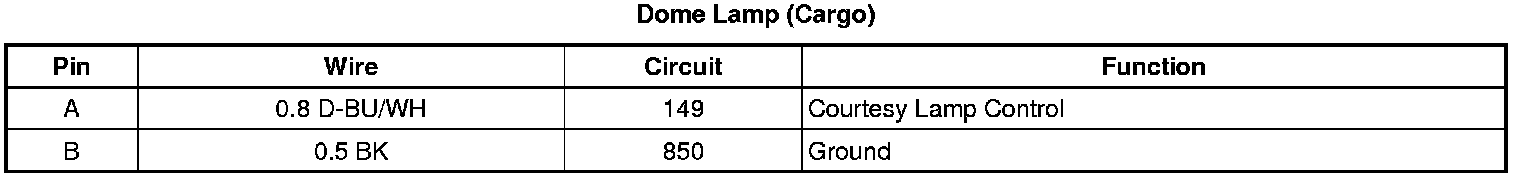

Dome Lamp (Cargo)
