Chevy Truck
>>
2012
>>
Express 2500 V8-4.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector End Views By Name
>>
Speaker- Right Front
Speaker- Right Front
Component Connector End Views

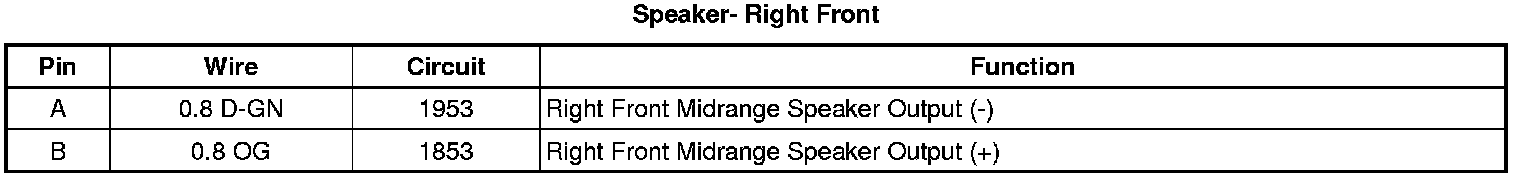

Speaker- Right Front
