Marker Lamp- Right Front
Marker Lamp- Right Front

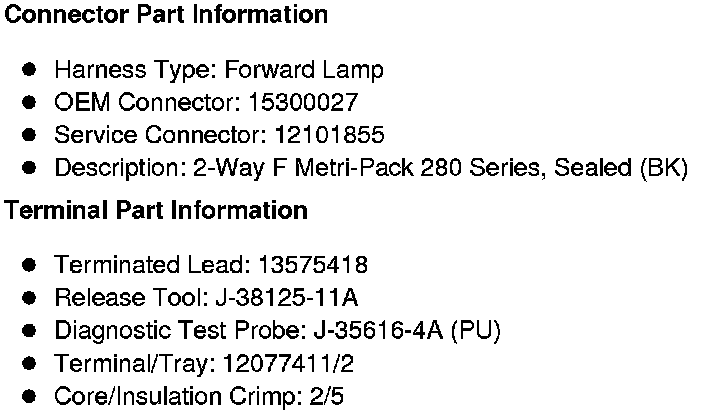

Component Connector End Views

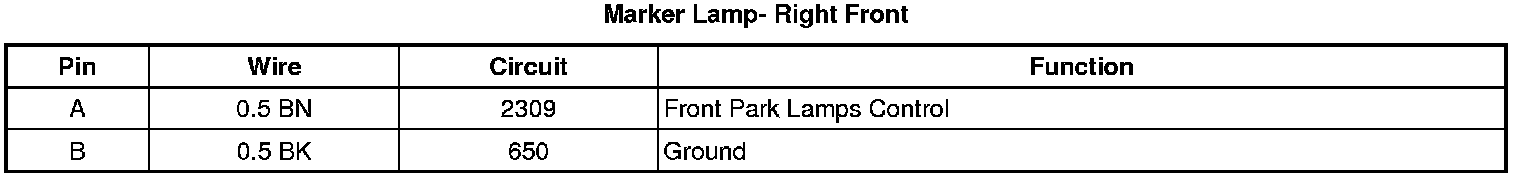

Marker Lamp- Right Front
