Home
>>
Chevy Truck
>>
2012
>>
Express 2500 V8-4.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector End Views By Name
>>
Headlamp- Right Low Beam (Composite)
Headlamp- Right Low Beam (Composite)

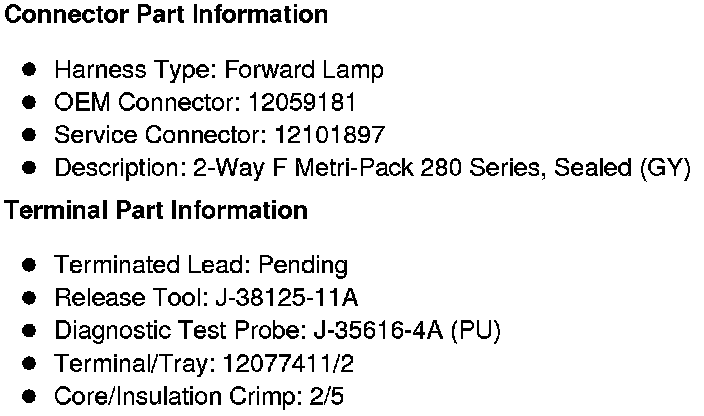

Component Connector End Views

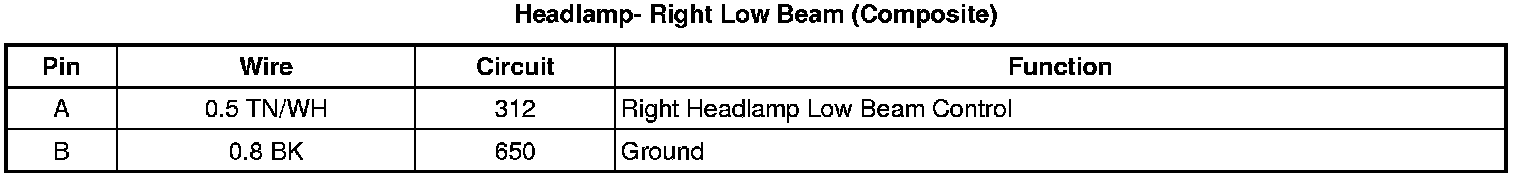

Headlamp- Right Low Beam (Composite)
