Headlamp- Left High Beam (Composite)

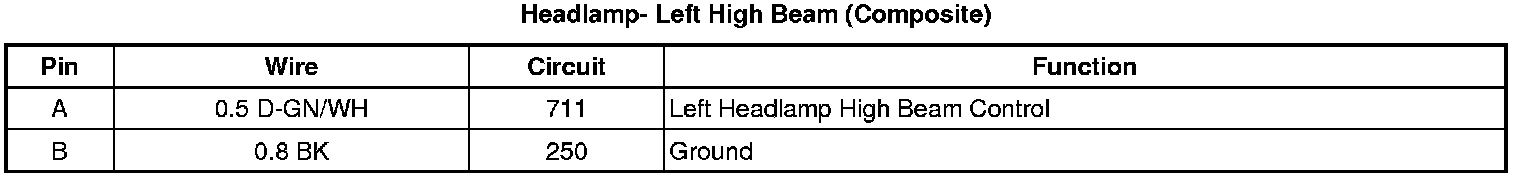

Headlamp- Left High Beam (Composite)

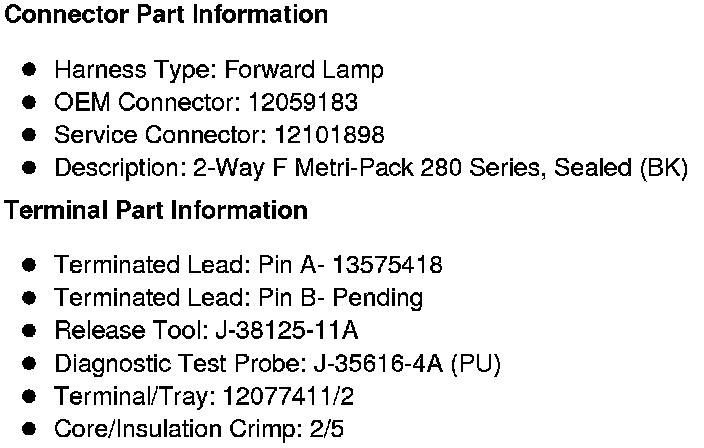

Component Connector End Views

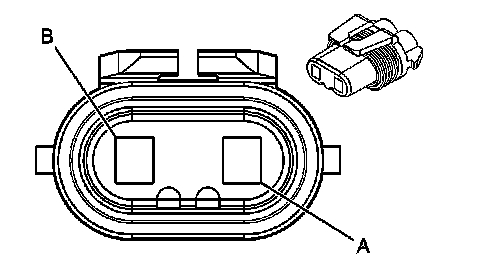

Headlamp- Left High Beam (Composite)
