Door Contact Plate- Right (Passenger or Cargo with AU3)
Door Contact Plate- Right (Passenger or Cargo with AU3)

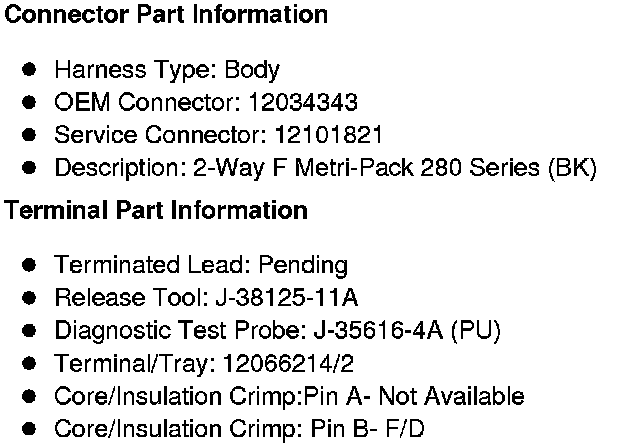

Component Connector End Views

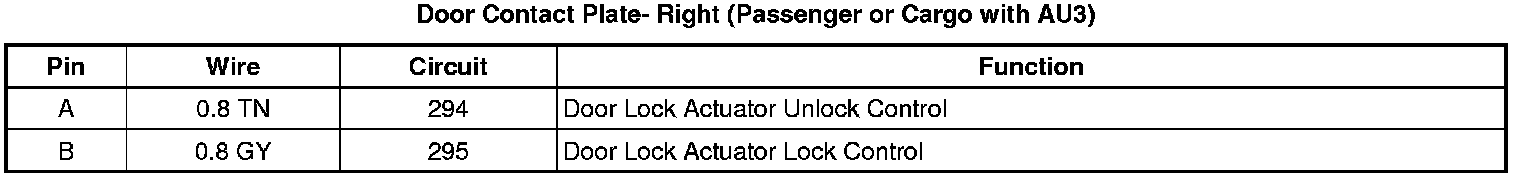

Door Contact Plate- Right (Passenger or Cargo with AU3)
