Engine Mount Replacement - Left Side

Engine Mount Replacement - Left Side

Removal Procedure

Caution:
Refer to Engine Mounting Caution Engine Mounting Caution.





1. From under the hood, remove the engine mount to engine mount bracket bolts.

2. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle Service and Repair.

Caution:
Refer to Engine Lifting Caution Engine Lifting Caution.





3. Using an adjustable jack on the square tab at the rear of the engine block, raise the engine.

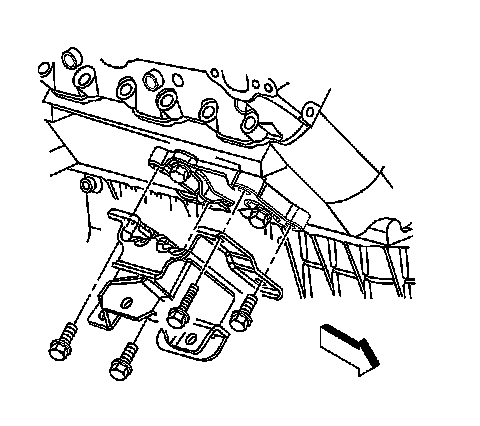

4. Remove the engine mount bolts.

5. Remove the engine mount.

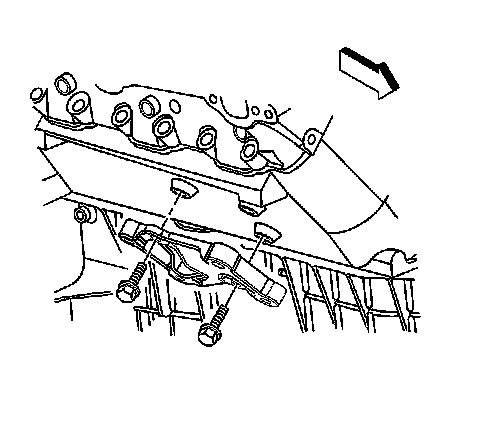

6. If equipped and necessary, remove the engine mount side bracket bolts and bracket.

Installation Procedure





1. Position the engine mount side bracket to the engine, if removed and equipped.

Caution:
Refer to Fastener Caution Fastener Caution.

2. Install the engine mount side bracket bolts and tighten to 50 Nm (37 lb ft).





3. Install the engine mount.

4. Install the engine mount bolts and tighten to 50 Nm (37 lb ft).

5. Lower the engine.

6. Lower the vehicle.





7. Install the engine mount to engine mount bracket bolts and tighten to 65 Nm (48 lb ft).
