Engine Mount Adapter Replacement

Engine Mount Adapter Replacement

Removal Procedure





1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle Service and Repair.

2. Remove the engine mount. Refer to Engine Mount Replacement - Left Side Engine Mount Replacement - Left Side or Engine Mount Replacement - Right Side Engine Mount Replacement - Right Side.

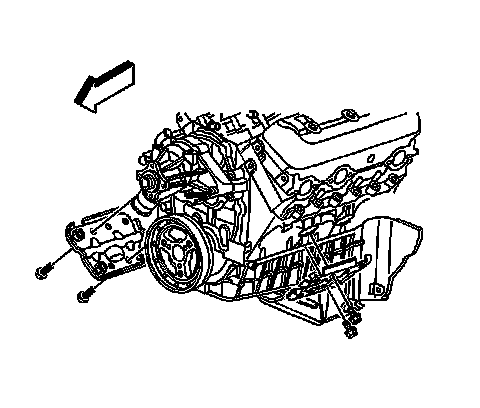

3. Remove the engine mount adapter mounting bolts.

4. Remove the engine mount adapter.

Installation Procedure





1. Install the engine mount adapter.

Caution:
Refer to Fastener Caution Fastener Caution.

2. Install the engine mount adapter mounting bolts and tighten to 50 Nm (37 lb ft).

3. Install the engine mount. Refer to Engine Mount Replacement - Left Side Engine Mount Replacement - Left Side or Engine Mount Replacement - Right Side Engine Mount Replacement - Right Side.

4. Lower the vehicle.
