X162
X162
Inline Harness Connector End Views

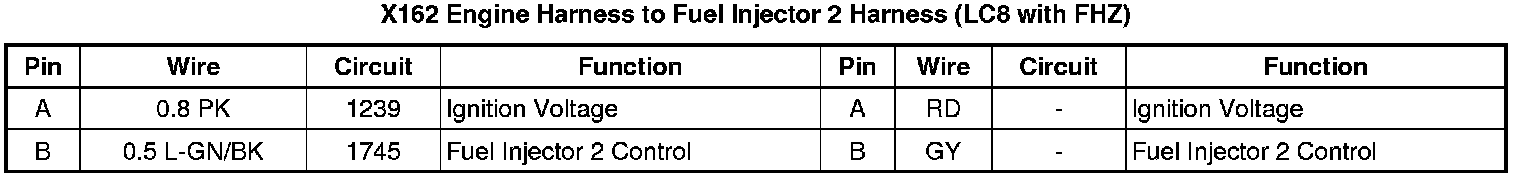

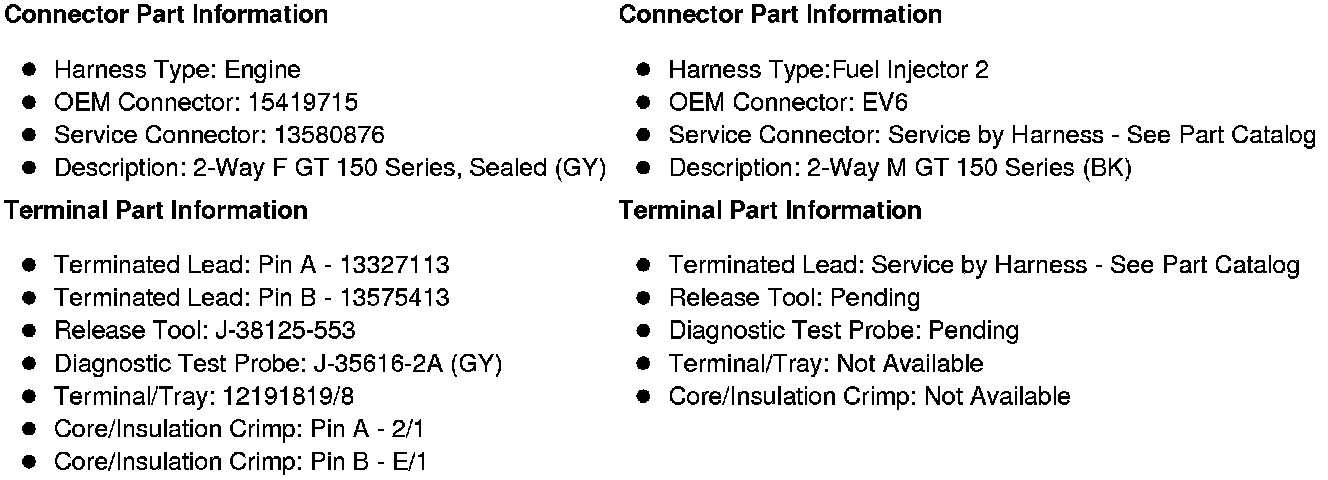

X162 Engine Harness to Fuel Injector 2 Harness (LC8 with FHZ)
