Automatic Transmission Shift Lock Control Solenoid

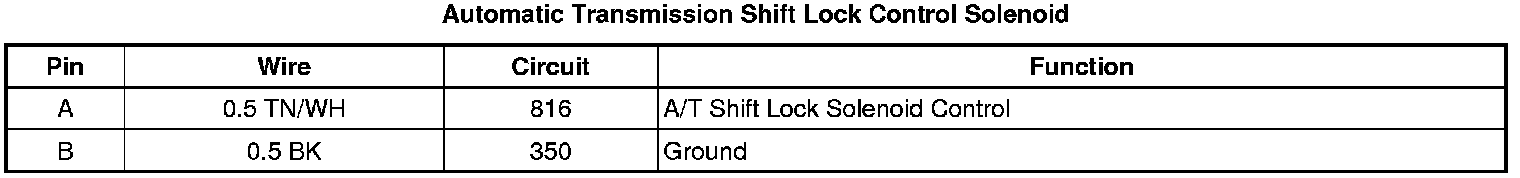

Automatic Transmission Shift Lock Control Solenoid

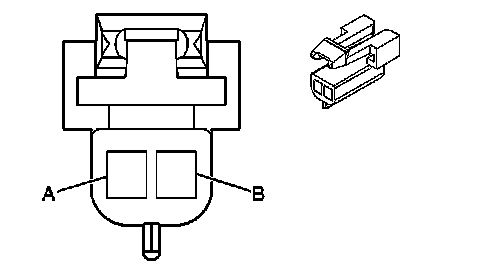

Component Connector End Views
Automatic Transmission Shift Lock Control
Solenoid
