Equinox AWD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Door Lock Switch
>>
Door Lock Switch - Driver
Door Lock Switch - Driver

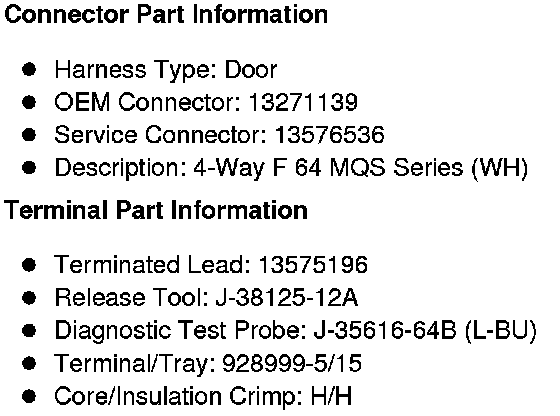

Component Connector End Views

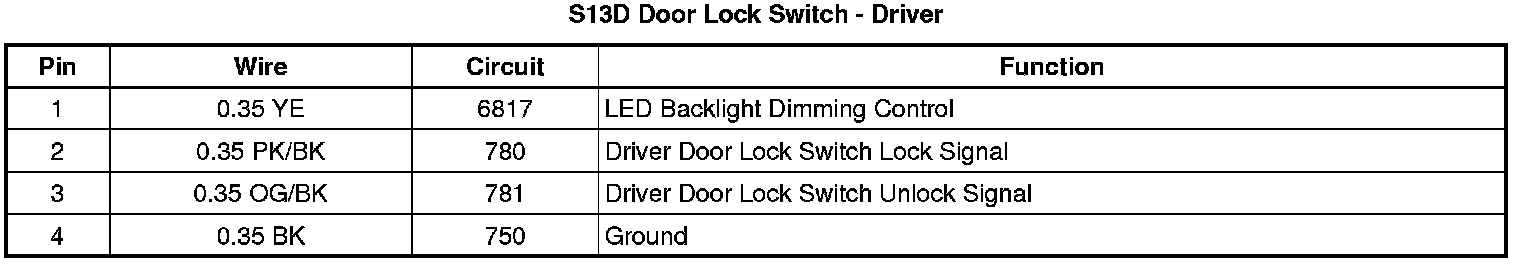

S13D Door Lock Switch - Driver
