Driver/Vehicle Information Display
>>
Info Display Module (without UYS or UYX)
Info Display Module (without UYS or UYX)

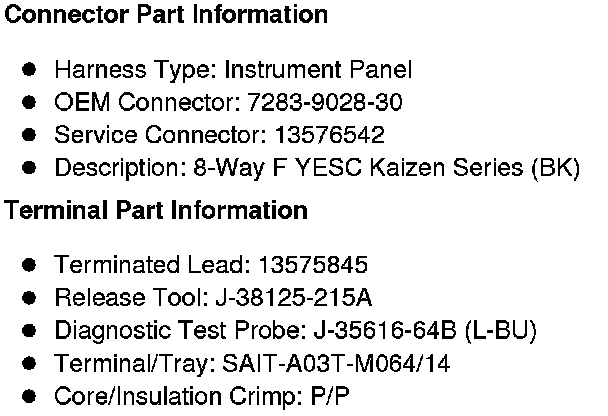

Component Connector End Views

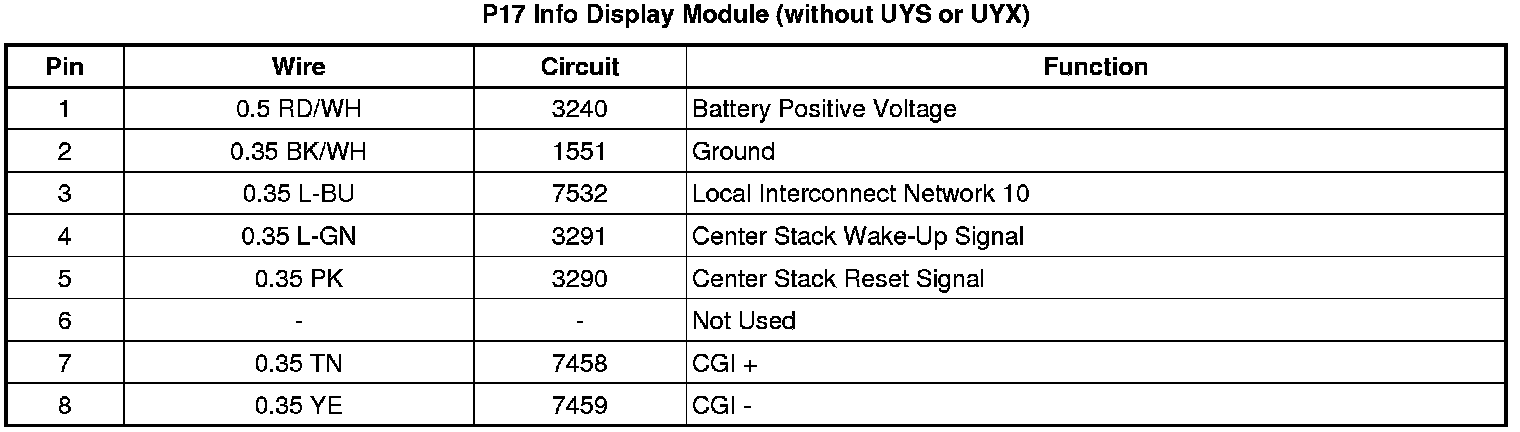

P17 Info Display Module (without UYS or UYX)
