Passenger Instrument Panel Air Bag X2
Passenger Instrument Panel Air Bag X2

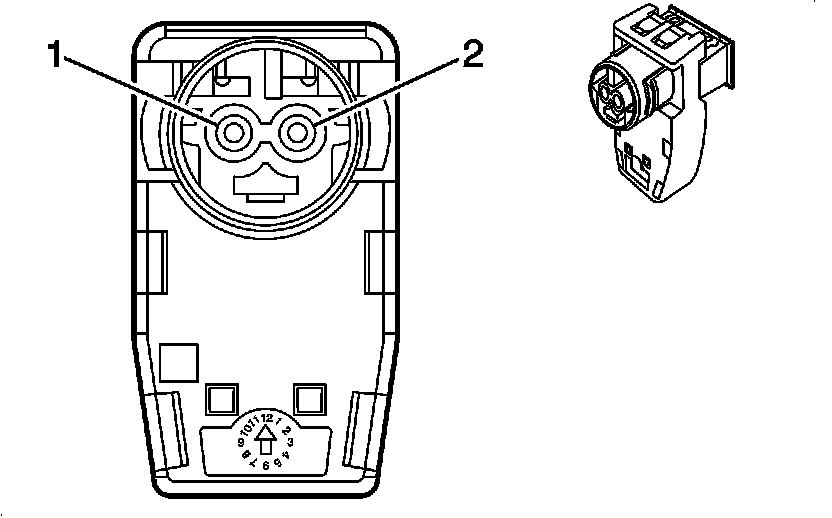

Component Connector End Views

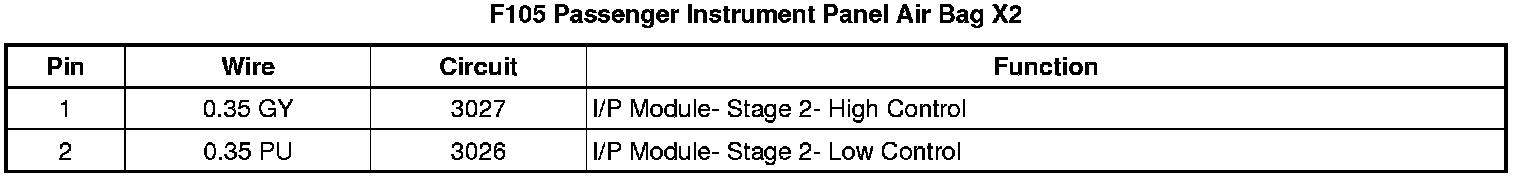

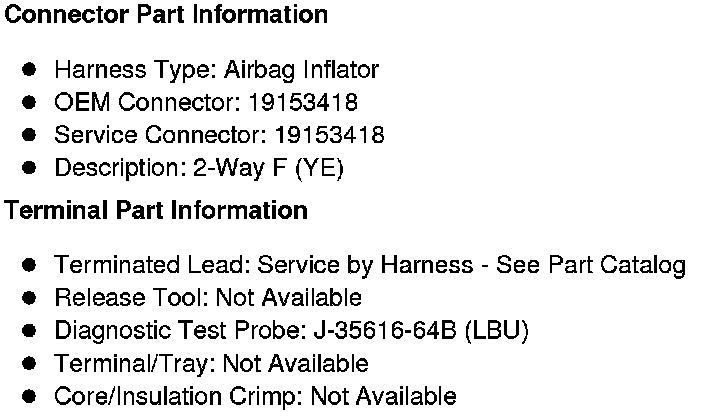

F105 Passenger Instrument Panel
Air Bag
X2
