Parking Brake Release Switch
Parking Brake Release Switch

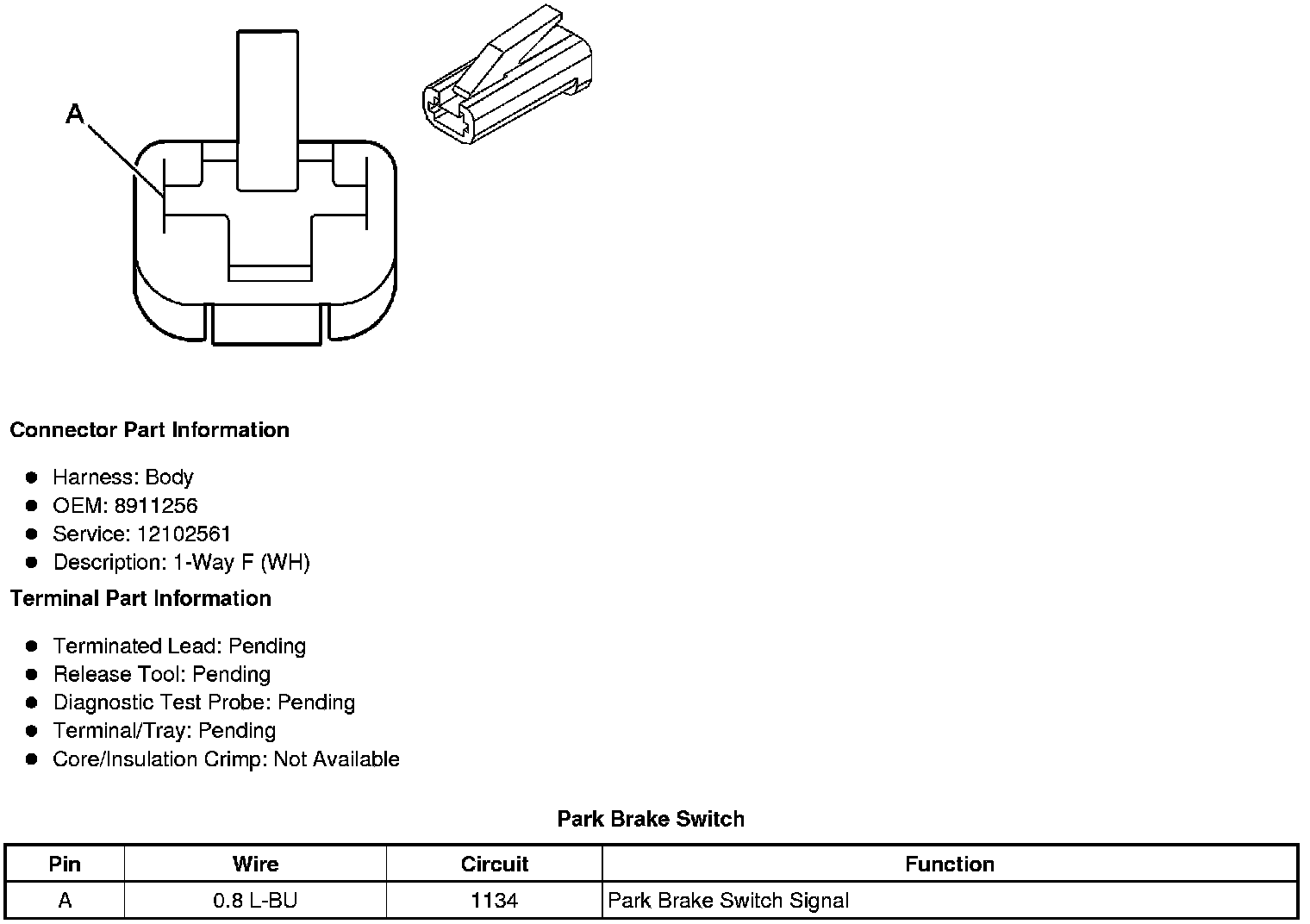

Component Connector End Views
Park Brake Switch
