Headlamp
>>
Headlamp - Right High Beam
Headlamp - Right High Beam

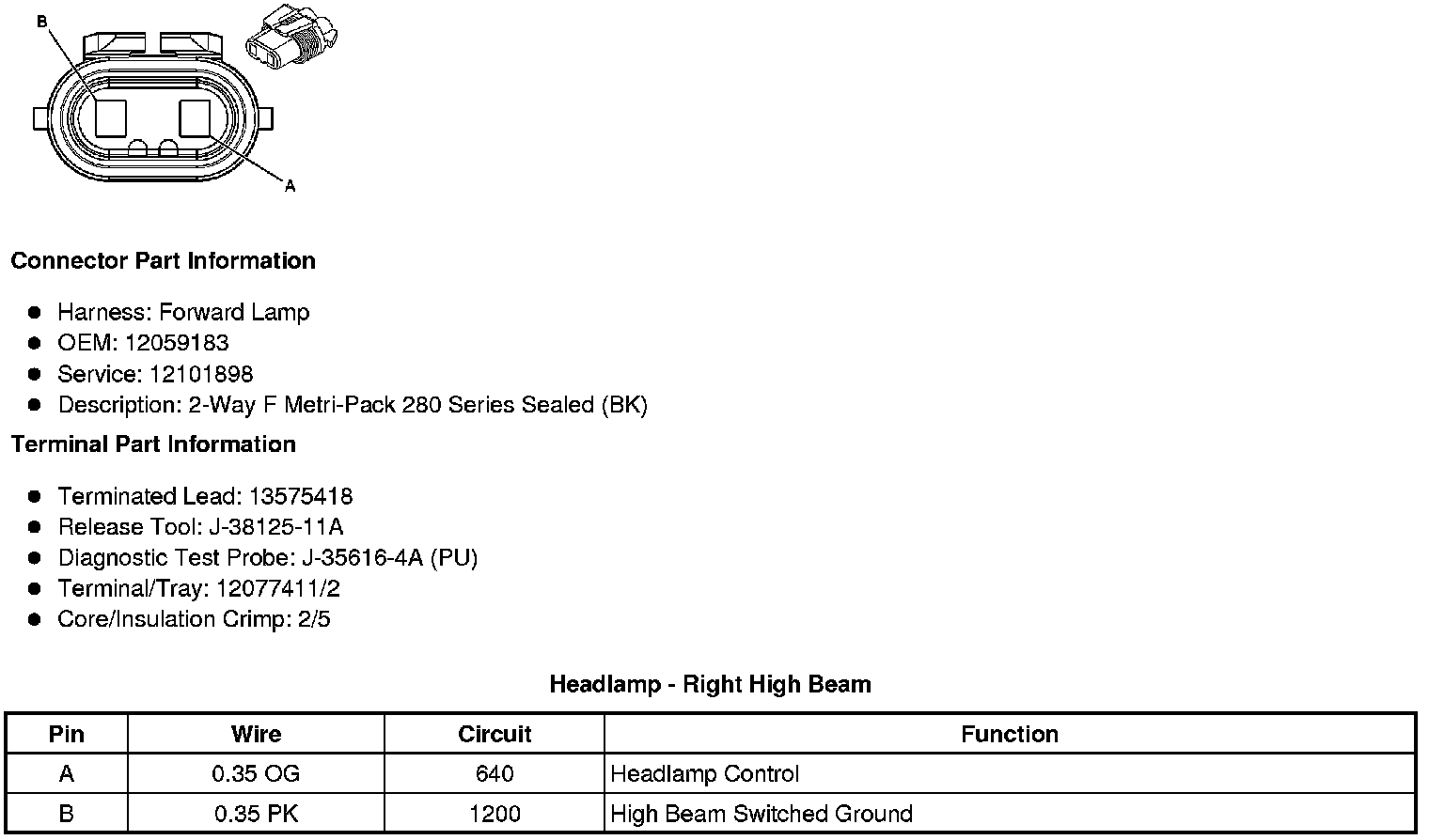

Component Connector End Views
Headlamp - Right High Beam
