Front Center Seat Belt Buckle Replacement

Front Center Seat Belt Buckle Replacement

Removal Procedure




1. Remove the rear inboard seat bolt from the driver seat.
2. Remove the grommet securing the center seat belt buckle assembly (1) to the seat adjuster.
3. Remove the center seat belt buckle assembly (1).

Installation Procedure

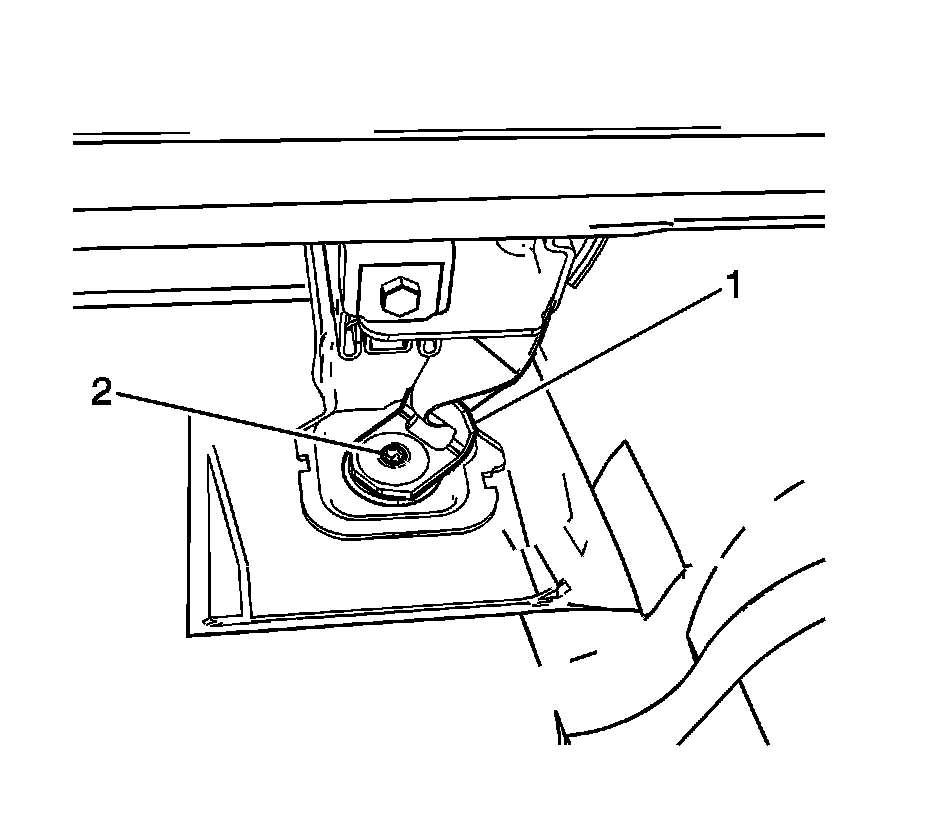

1. Position the seat belt buckle assembly (1) over the rear inboard seat adjuster mounting hole.

Caution: Refer to Fastener Caution Fastener Caution.

2. Install the front seat mounting bolt (2).

Tighten the front seat mounting bolt to 52.5 Nm (39 lb ft).
