Ground Distribution Schematics
>>

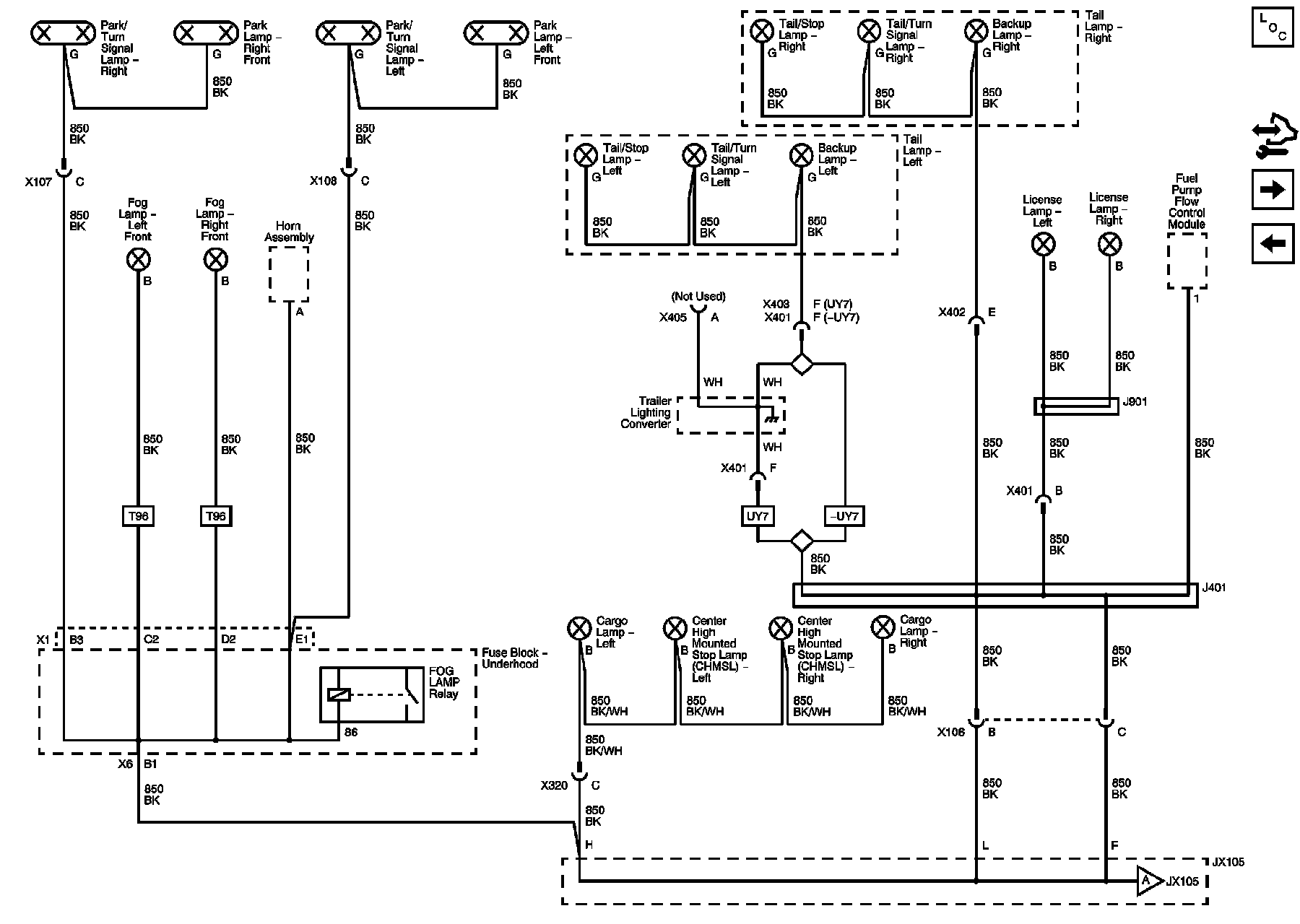

G105 (1 of 2)
G105 (1 of 2)
Ground Distribution Schematics
G105 (1 of 2)
