Passenger Seat Schematics
Passenger Seat Schematics
Passenger Seat Schematics

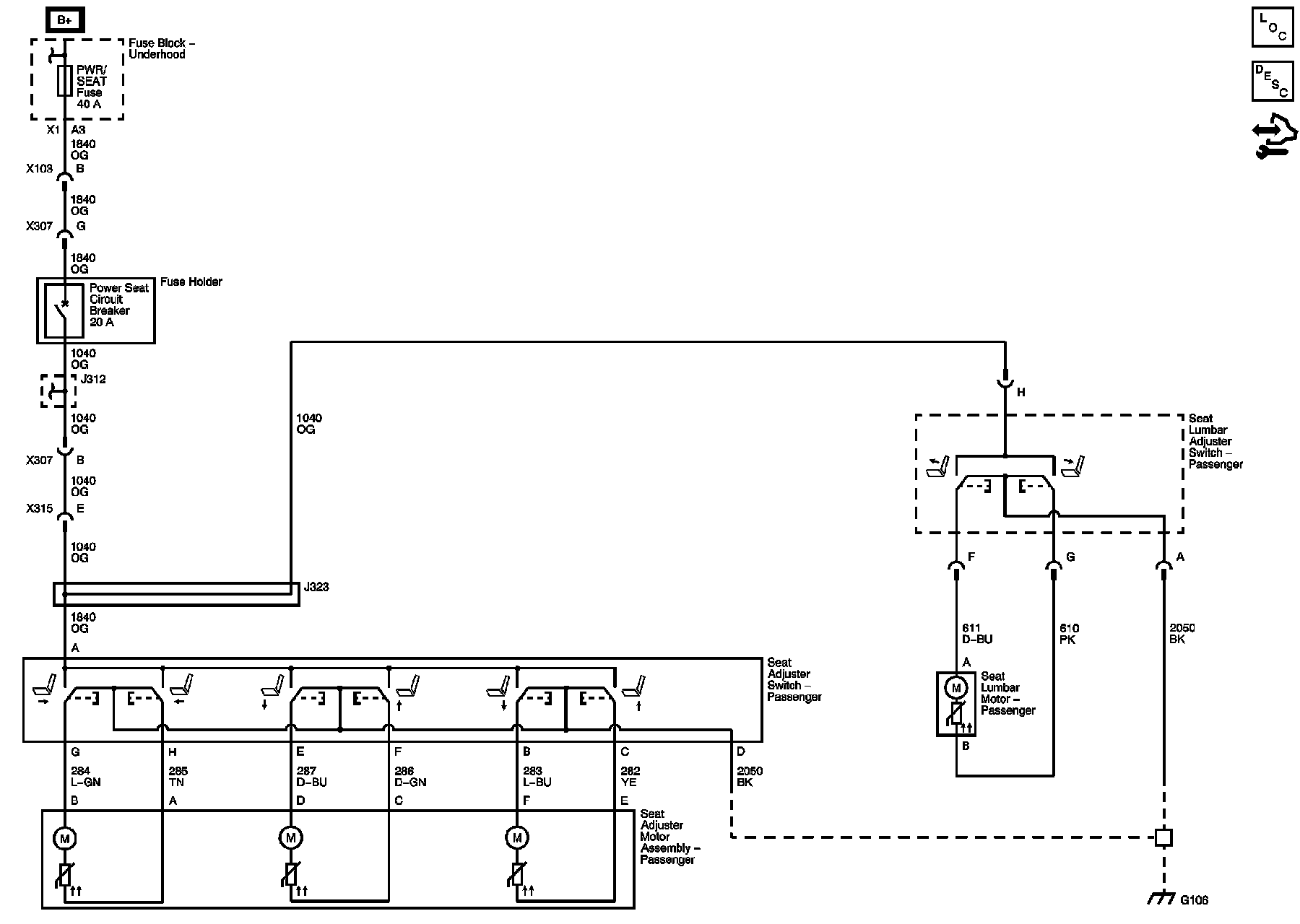

Power, Ground, Seat Adjustment and Lumbar Adjustment Controls
