Parking Brake Lever: Service and Repair

Parking Brake Lever Pedal Assembly Replacement

Removal Procedure




1. Release the park brake.
2. Raise the vehicle. Refer to Lifting and Jacking the Vehicle Service and Repair.
3. Remove the wheel house inner liner. Refer to Front Wheelhouse Liner Replacement.

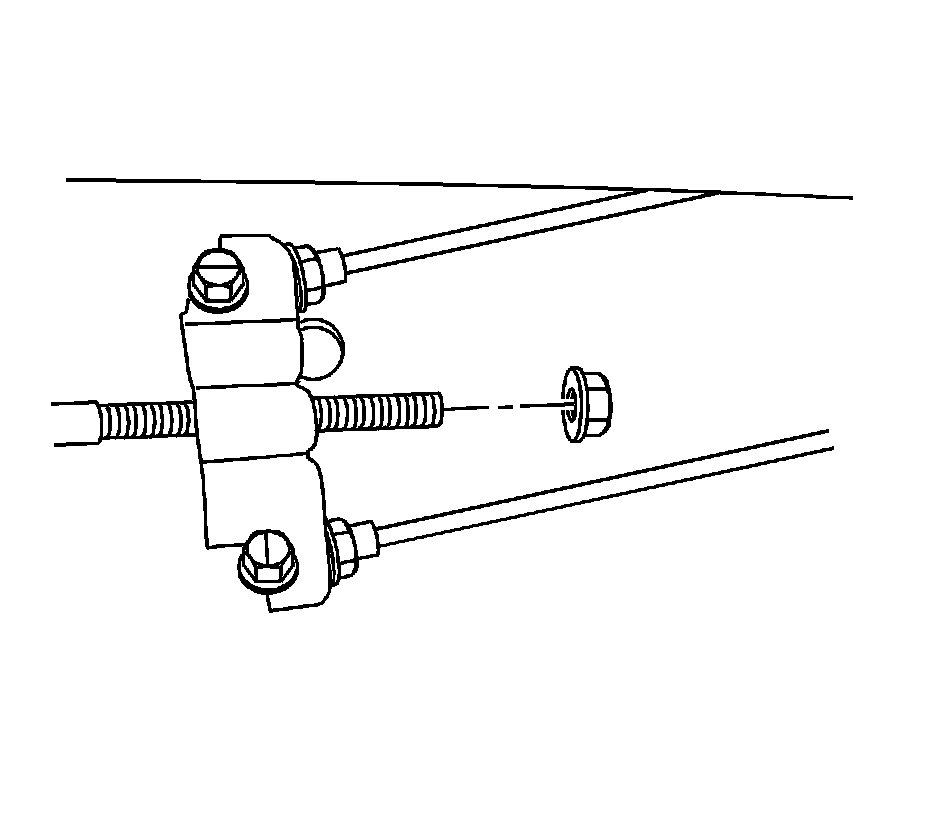

4. Remove the park brake cable adjusting nut.

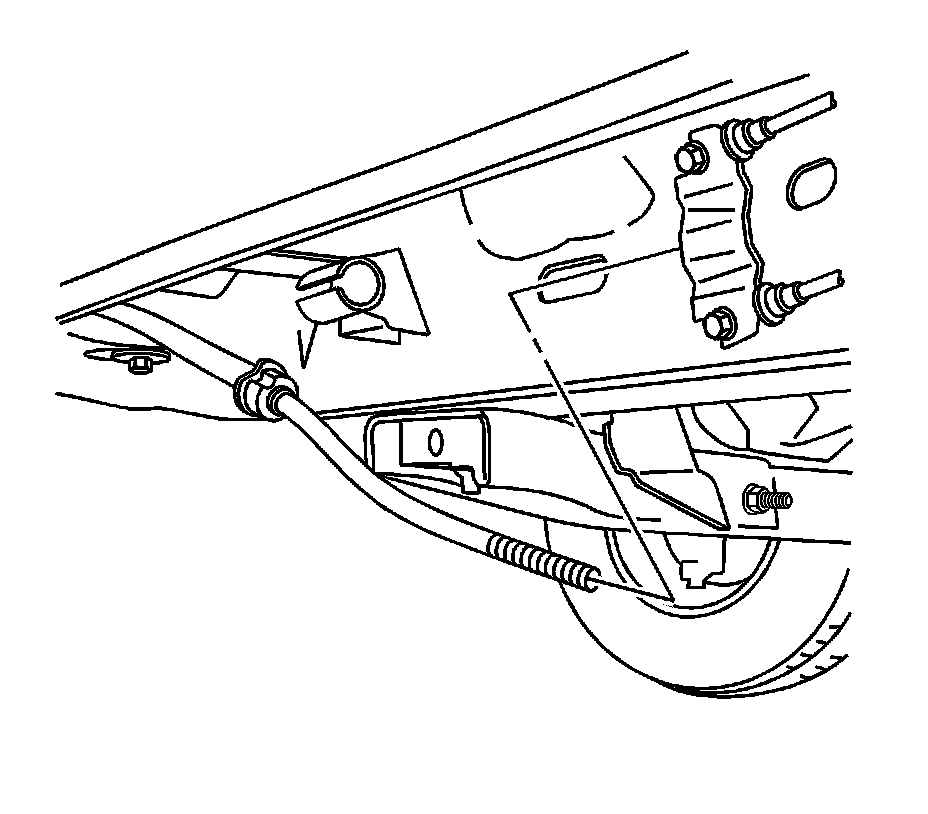

5. Remove the front park brake cable from the equalizer.

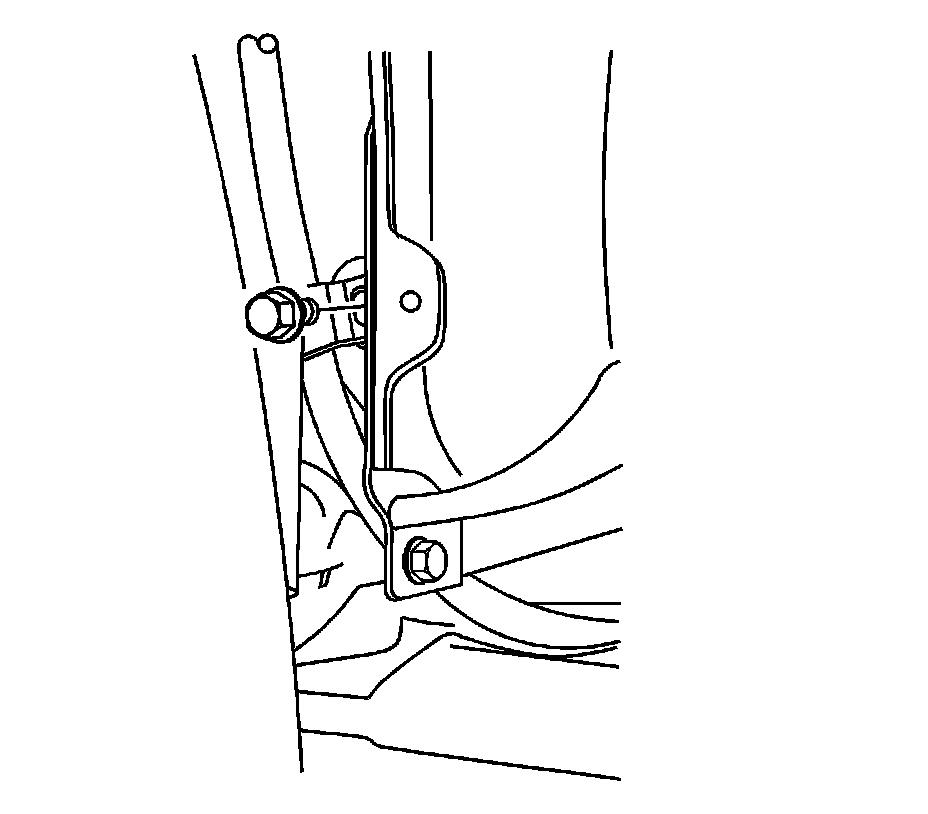

6. Remove the retaining bolt for the front park brake cable.
7. Remove the knee bolster panel. Refer to Knee Bolster Replacement Knee Bolster Replacement.
8. Remove the clutch pedal assembly. Refer to Clutch Pedal Replacement Service and Repair.




9. Remove the electrical connector from the brake switch.

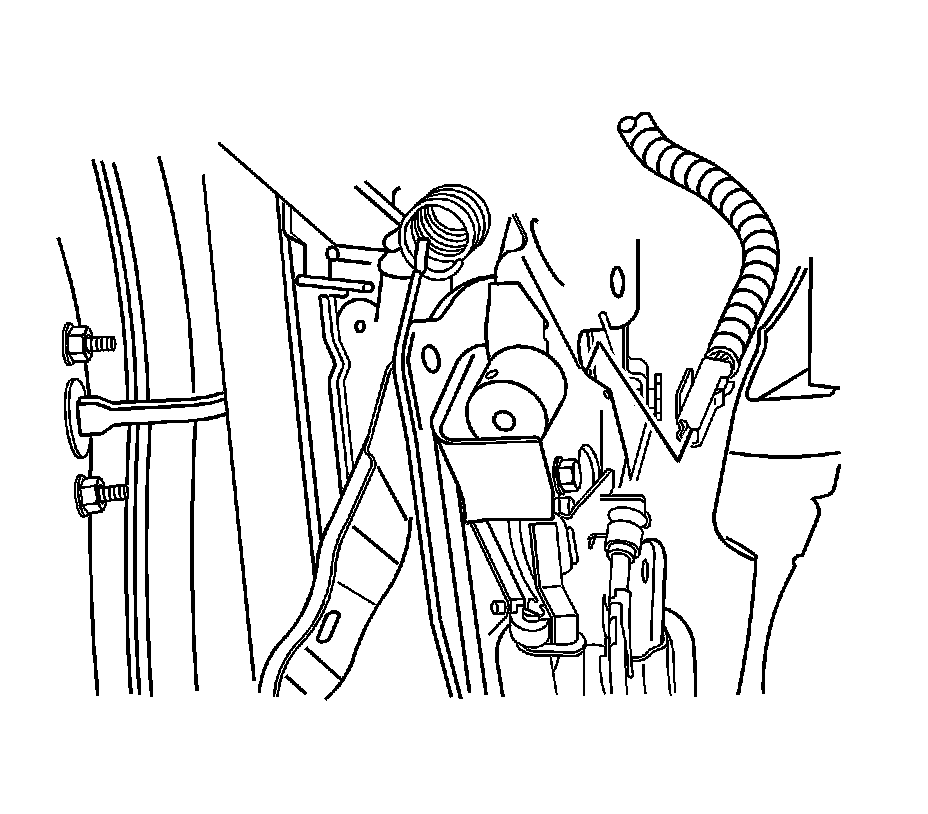

10. Remove the park brake cable pedal mounting bolts.
11. Remove the front park brake cable weather seal.
12. Remove the park brake pedal assembly from the vehicle.

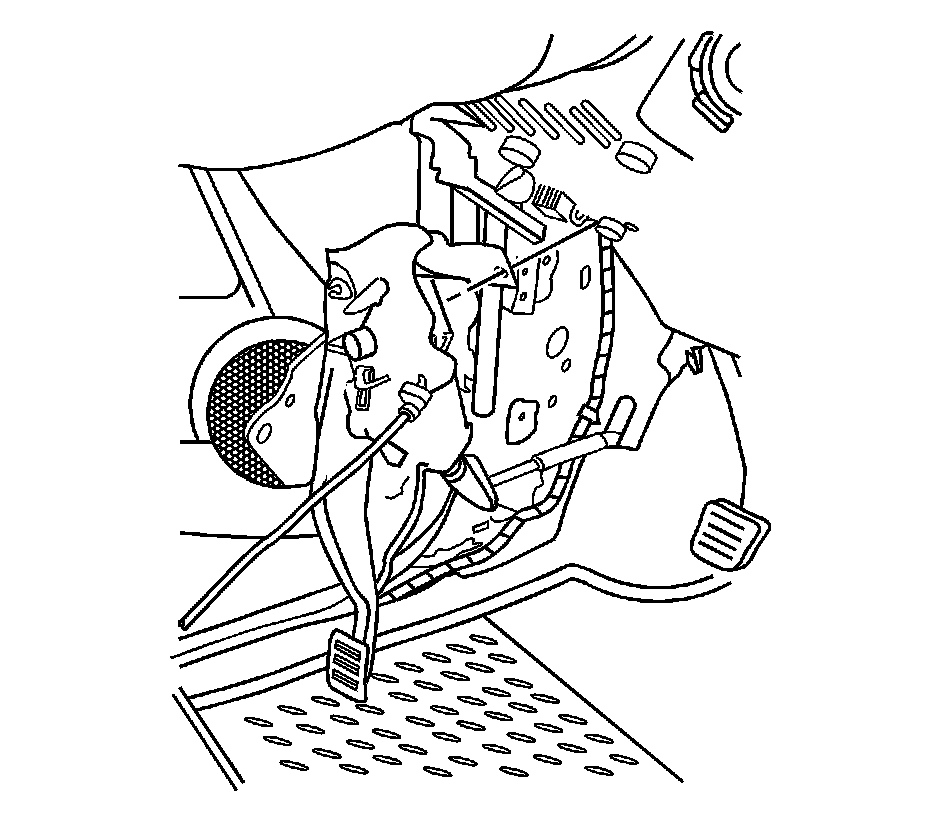

13. Remove the front park brake pedal and cable assembly from the vehicle noting routing for installation.

Installation Procedure




1. Install the park brake pedal and cable assembly as previously routed.

Caution: Refer to Fastener Caution Fastener Caution.

2. Install the mounting bolts for the park brake pedal assembly and tighten to 20 Nm (15 lb ft).
3. Install the front park brake cable weather seal.
4. Install the clutch pedal assembly. Refer to Clutch Pedal Replacement Service and Repair.




5. Install the retaining bolt for the front park brake cable at the wheel well and tighten the bolt to 20 Nm (15 lb ft).




6. Install the front park brake cable to the equalizer.




7. Install the park brake cable adjusting nut. Refer to Parking Brake Adjustment Adjustments.
8. Install the wheel house liner. Refer to Front Wheelhouse Liner Replacement.
9. Install the knee bolster panel. Refer to Knee Bolster Replacement Knee Bolster Replacement.
10. Lower the vehicle.
