Home
>>
Chevy Truck
>>
2012
>>
Colorado 2WD L4-2.9L
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Diagrams
>>
Electrical Diagrams
>>
OnStar Schematics
OnStar Schematics
OnStar Schematics

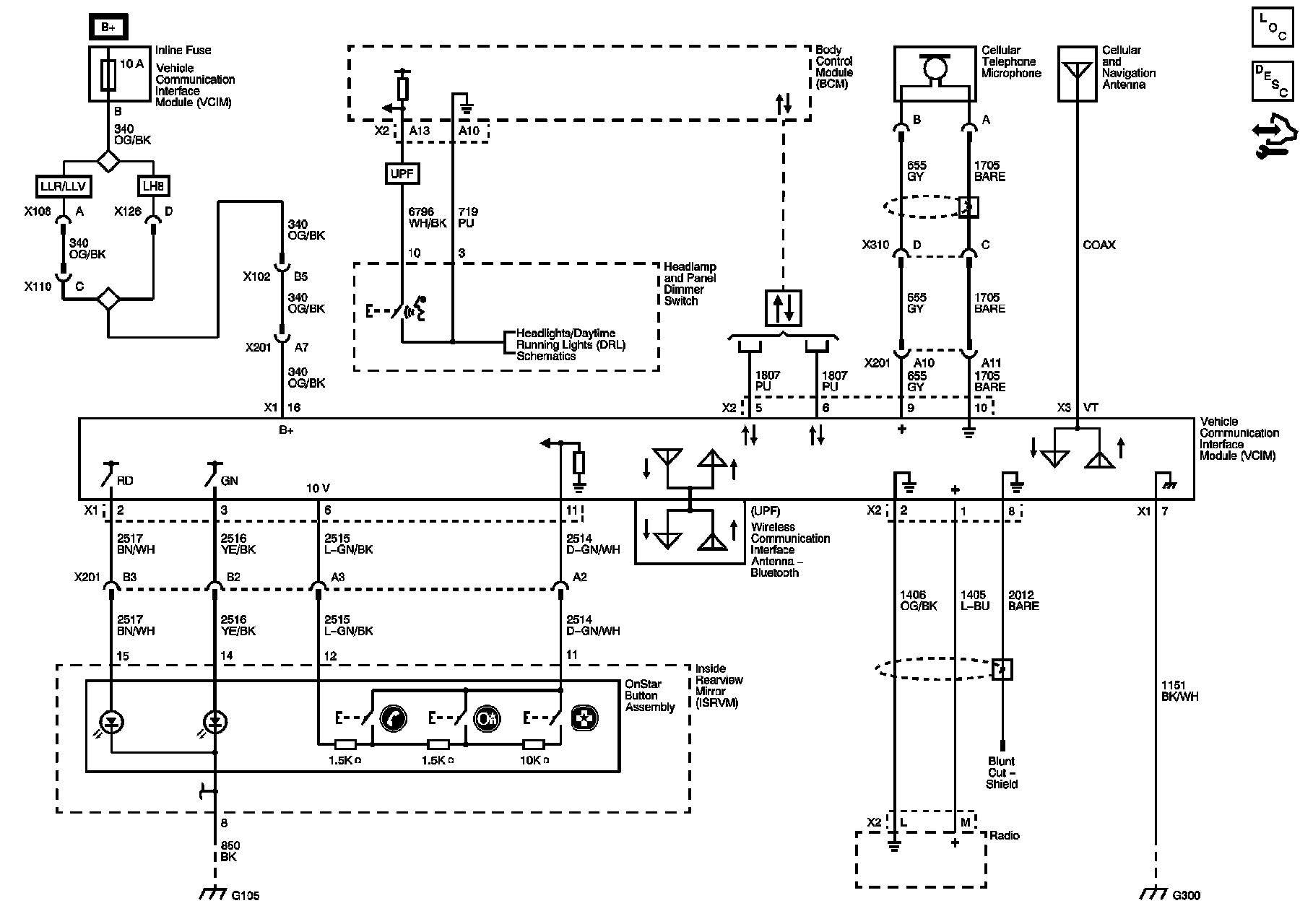

Power, Ground, OnStar and Cellular Communication Controls
