Passenger Seat Schematics
Passenger Seat Schematics
Passenger Seat Schematics

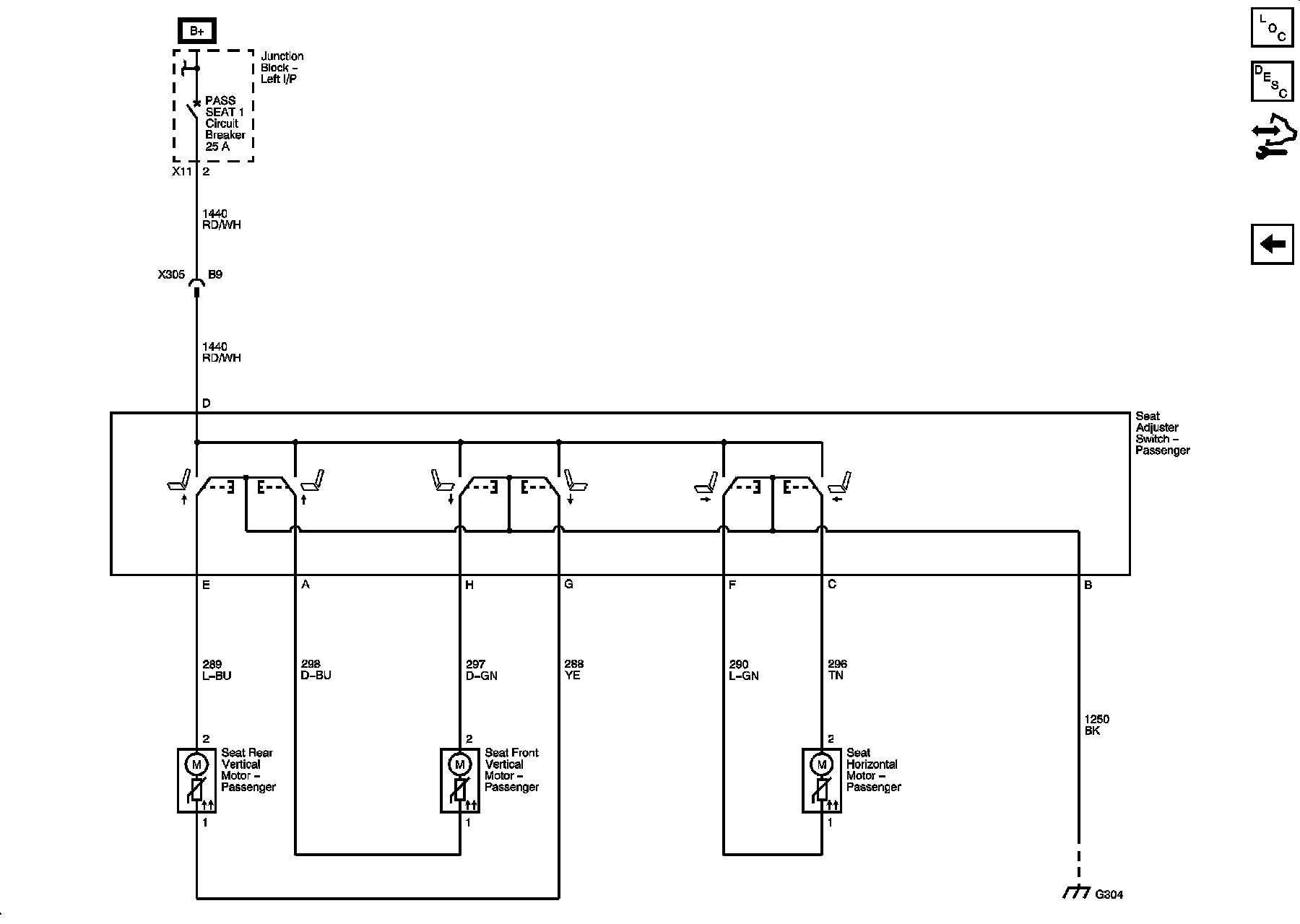

Except AN3

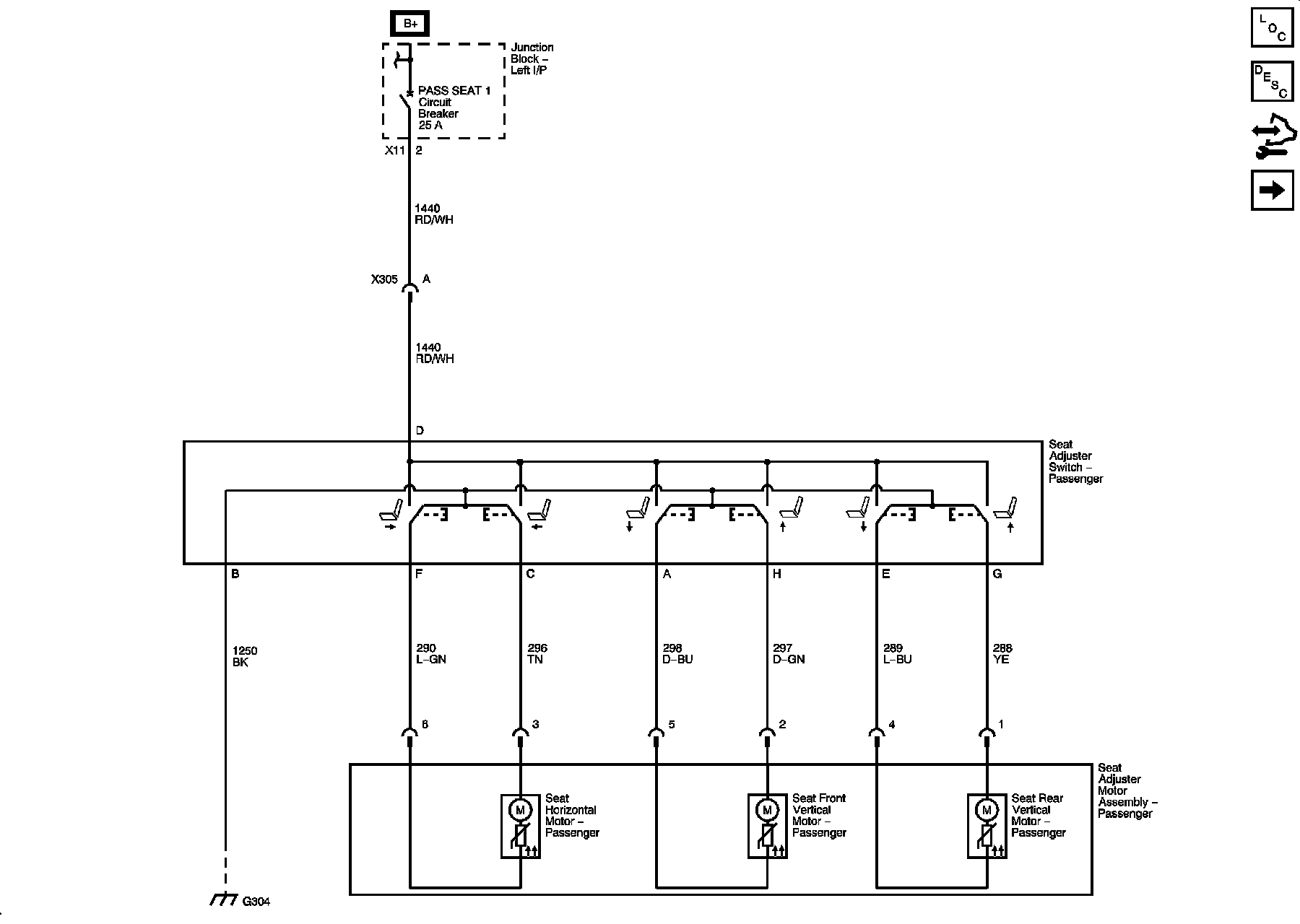

AN3

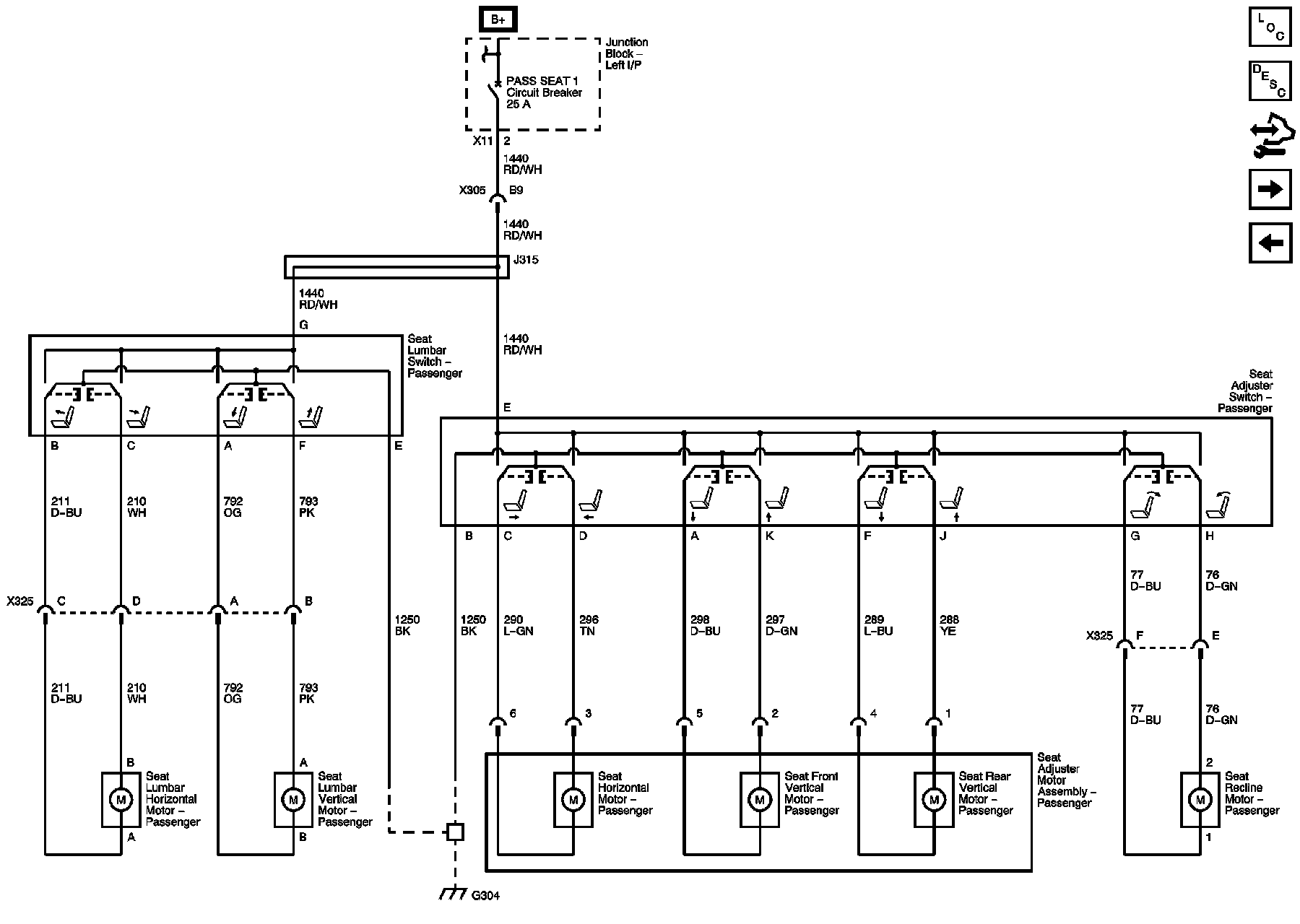

6-Way Power (HP2)
